Check Valve

Design Features

• Type: Swing check valve with flanged ends.

• Function: Prevents backflow in pipelines; disc swings open with forward flow and closes with reverse flow.

• End Connection: Flanged (compatible with ANSI B16.1 Class 125 or equivalent).

• Mounting Position: Horizontal or vertical (flow upwards only).

• Body Cap: Bolted cover for easy maintenance access.

• Sealing: Metal-to-metal or soft seat (optional) for tight shut-off.

• Flow Direction: Clearly marked on body for installation accuracy.

• Low pressure drop due to streamlined body design.

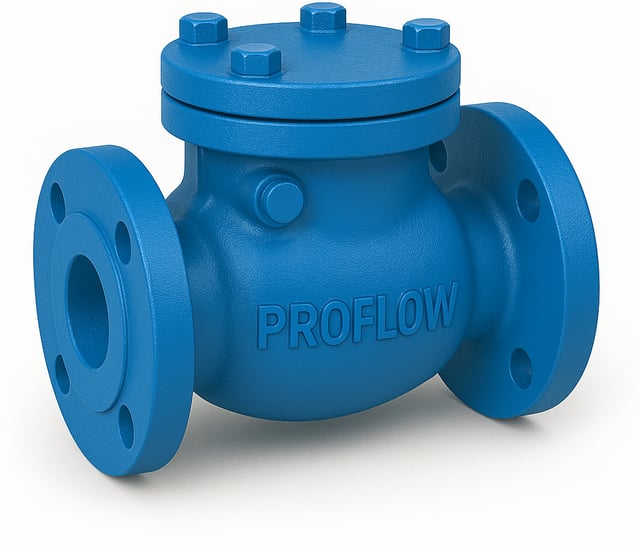

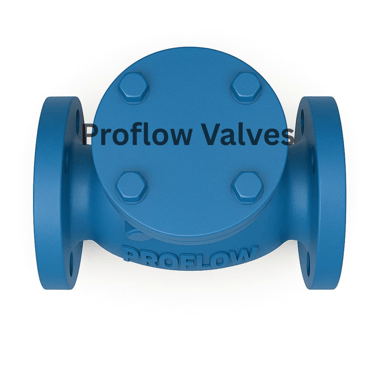

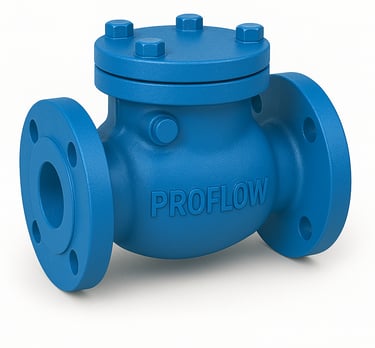

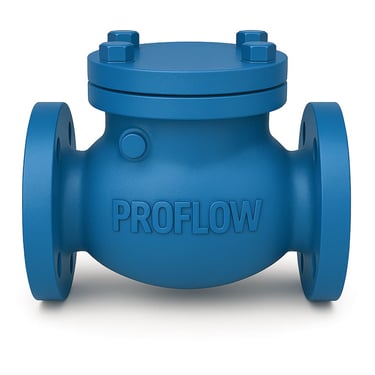

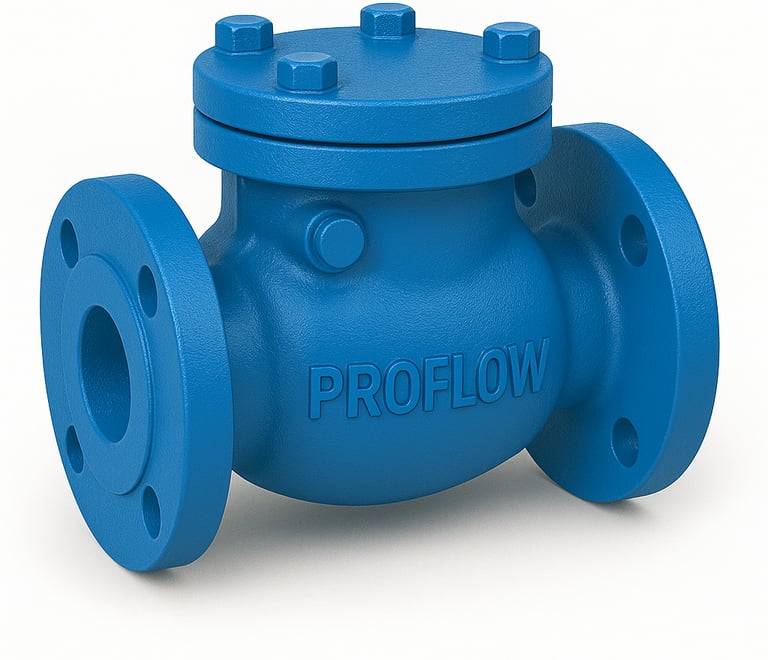

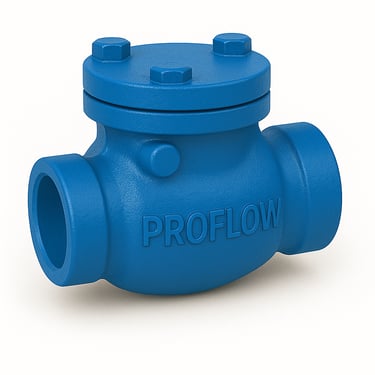

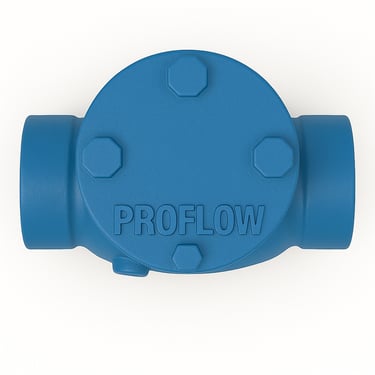

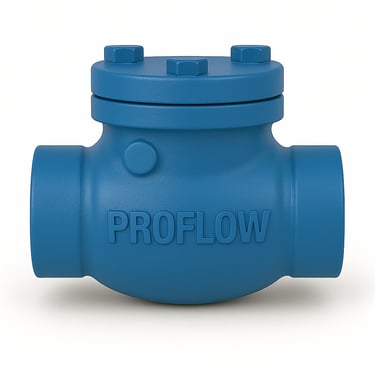

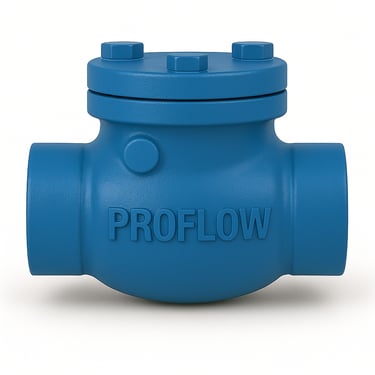

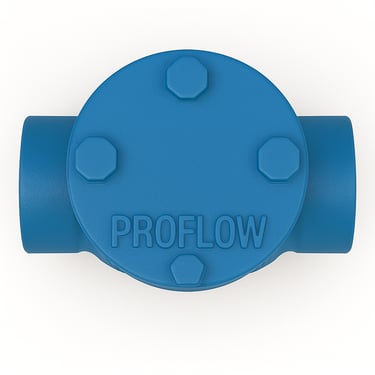

Cast Iron Swing Check Valve

Material of Construction

• Body & Cover: Cast Iron (ASTM A126 Class B or equivalent).

• Disc: Bronze/Brass or Cast Iron with rubber/EPDM lining, depending on application.

• Seat: Bronze or Renewable seat rings (optional).

• Hinge & Pin: Stainless Steel/Bronze.

• Fasteners: Carbon Steel or Stainless Steel (optional for corrosion resistance).

• Gasket: Compressed fiber or EPDM depending on media compatibility.

Size Range Available

• Standard sizes from 2” to 24” (DN50 to DN600).

• Larger sizes can be provided upon request for specific industrial requirements.

Pressure Rating

• Working Pressure: Up to 150 PSI (10.3 bar) for Class 125.

• Test Pressure: Hydrostatic body test at 300 PSI; seat test at 200 PSI.

• Temperature Range: Up to 200°C (392°F) depending on lining and gasket materials

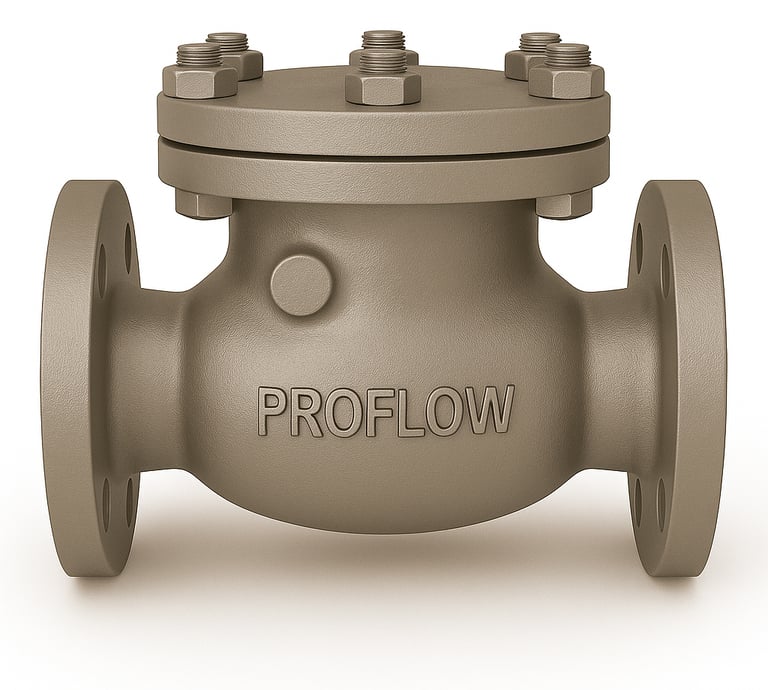

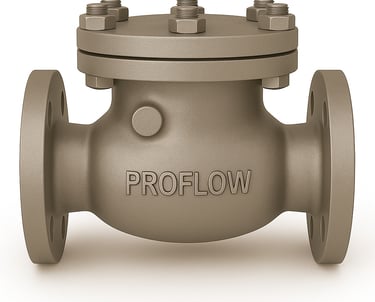

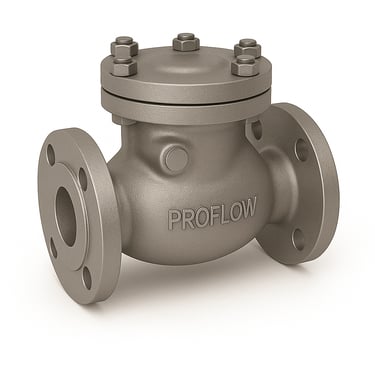

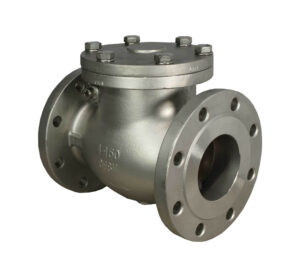

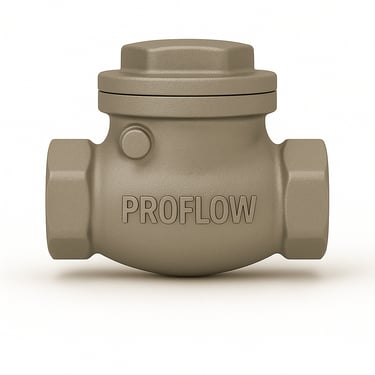

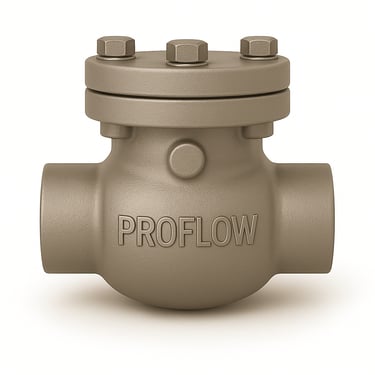

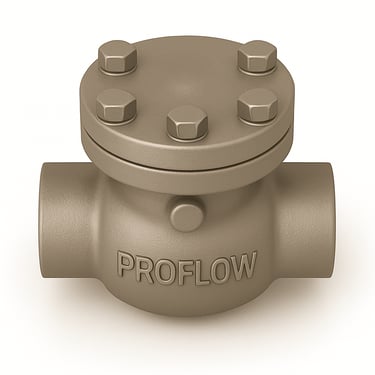

Cast Steel Swing Check Valve

Design Features

• Type: Swing Check Valve with Flanged Ends.

• Design Standard: Typically designed per API 6D or BS EN 1868.

• Flow Direction: One-way flow with automatic backflow prevention.

• Disc Type: Swing type, fully opens with flow and swings shut under backflow.

• End Connection: Flanged (ANSI B16.5 / ASME Class compatibility).

• Cover Type: Bolted cover for easy access and maintenance.

• Installation Orientation: Suitable for horizontal and vertical (flow-up) installation.

• Internal Stop Pin: Limits disc travel to reduce water hammer.

• Tight Sealing: Optional soft-seat or metal-to-metal seat for bubble-tight shutoff.

Material of Construction

• Body & Cover: Cast Steel (WCB / ASTM A216 Grade WCB).

• Disc: Stainless Steel / Cast Steel with optional overlay or rubber-faced disc.

• Seat Ring: Stainless Steel / Renewable seat (hard-faced available on request).

• Hinge & Hinge Pin: Stainless Steel / High-strength alloy steel.

• Bolts & Nuts: ASTM A193 B7 / A194 2H (Carbon Steel or optional SS).

• Gasket: Spiral Wound Stainless Steel with Graphite or PTFE filler.

Size Range Available

• Standard sizes: 2” to 24” (DN50 to DN600).

• Extended sizes: Up to DN1000 or larger available on request

Pressure Rating

• Class 150: Up to 285 PSI @ 100°F (19.6 bar @ 38°C)

• Class 300: Up to 740 PSI @ 100°F (51 bar @ 38°C)

• Hydrostatic Test Pressure:

  • Body: 1.5 × rated pressure.

  • Seat: 1.1 × rated pressure.

• Temperature Range: Up to 425°C (800°F) depending on gasket and seat materials.
