Design Features

• Rising Stem or Non-Rising Stem Options: Available in both configurations to suit space constraints and visual stem position indication preferences.

• Full Port Design: Minimizes flow restriction, allowing efficient fluid handling and reduced pressure drop across the valve.

• Disc Options: Equipped with a solid wedge or flexible wedge (depending on design) to provide reliable, leak-tight sealing under various flow and pressure conditions.

• Flanged Ends: Conforming to ANSI B16.1 and BS standards, ensuring compatibility with standard piping systems and ease of installation.

• Bi-Directional Flow Capability: Suitable for flow in both directions, offering flexibility in pipeline design and operation.

• Long Service Life: Engineered with durable components and precision manufacturing for extended operational lifespan and low maintenance.

• Operation Mechanism: Standard handwheel-operated for manual use; gear-operated options available for larger sizes or higher torque requirements.

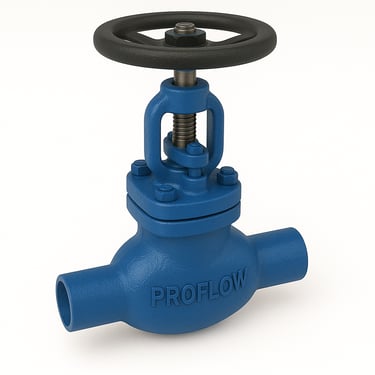

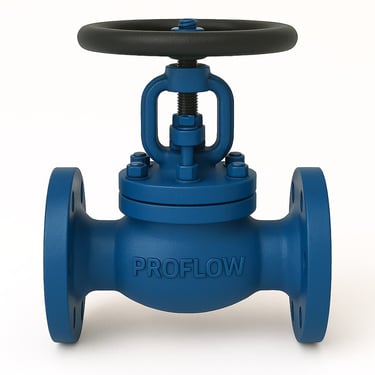

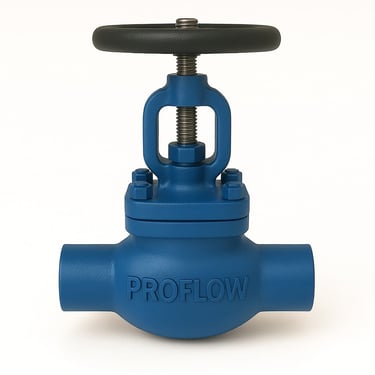

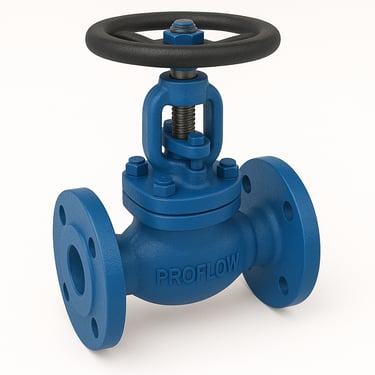

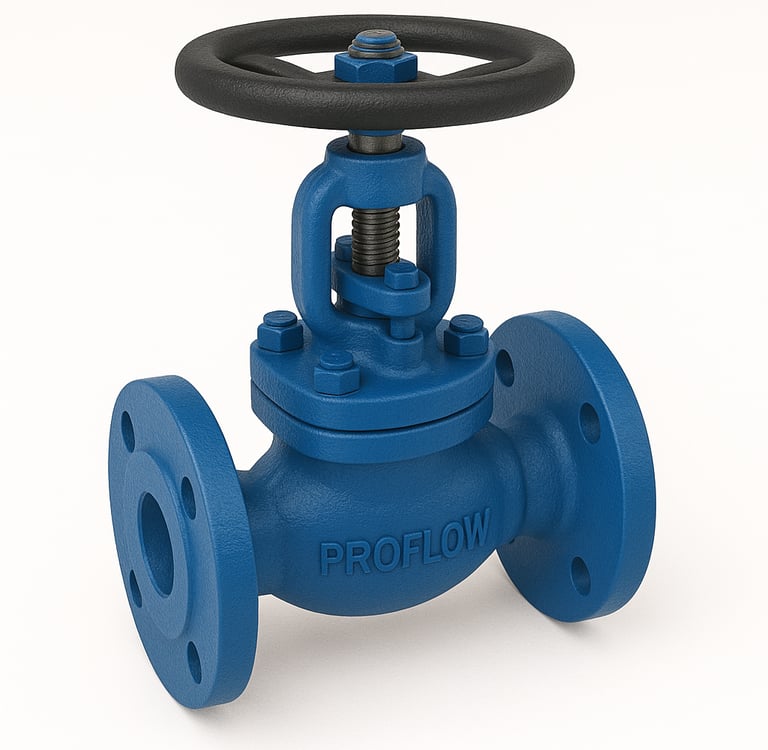

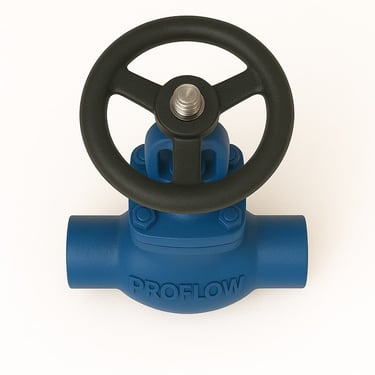

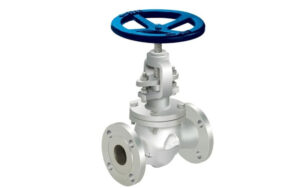

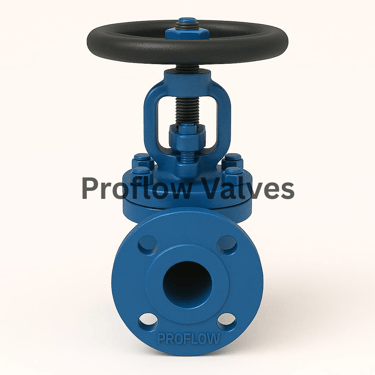

Cast Iron Globe Valve

Material of Construction

• Body & Bonnet: Cast Iron (CI) as per ASTM A126 or equivalent

• Trim (Disc & Seat): Bronze, Stainless Steel, or equivalent corrosion-resistant materials

• Stem: Stainless Steel for strength and durability

• Gland Packing: Graphite or PTFE for leak-proof performance

• Handwheel: Cast Iron or Carbon Steel

Size Available

• Standard sizes range from ½” to 12” (DN15 to DN300)

• Larger sizes can be provided upon request for specific industrial requirements

Pressure Rating

• Typically rated for PN10 / PN16

• ANSI Class 125 or 150

• Suitable for moderate pressure and temperature applications in water, steam, and gas systems.

Design Features

• Type: Globe Valve (used for flow regulation)

• End Connection: Flanged ends for secure bolting to piping systems

• Operation: Handwheel-operated rising stem

• Bonnet: Bolted bonnet for ease of maintenance and internal access

• Disc Type: Likely a plug or disc-type closure for throttling service

• Flow Direction: Typically flow under the disc for globe valves, symbol marked on body indicates direction

• Seating: Precision-machined seat for tight shut-off

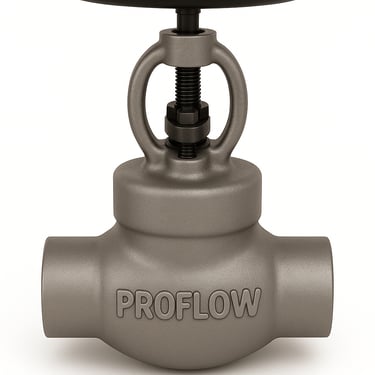

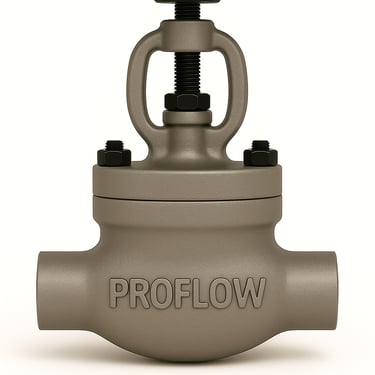

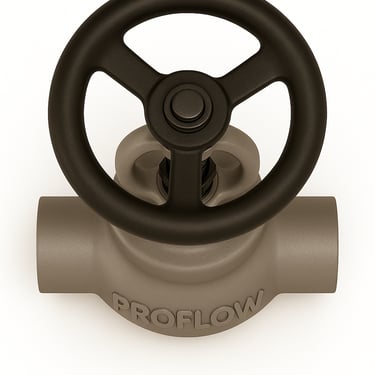

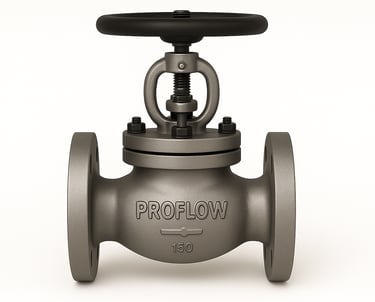

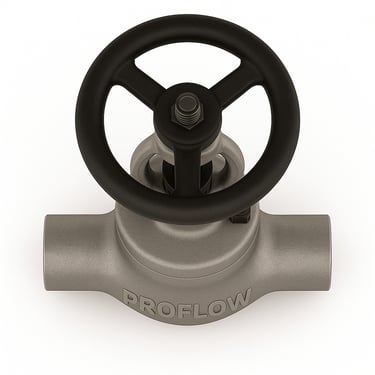

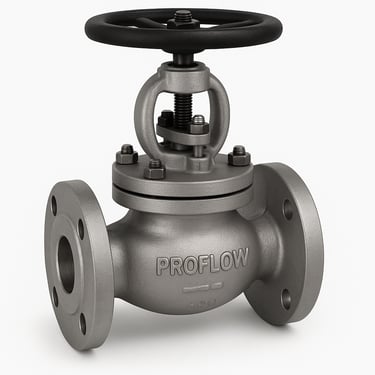

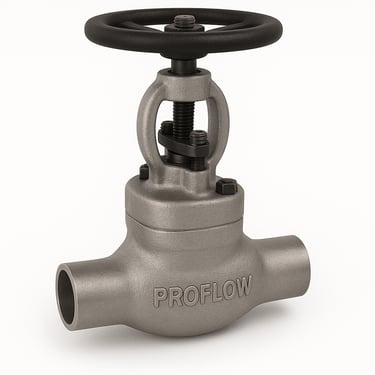

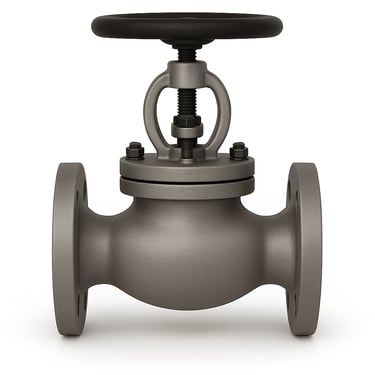

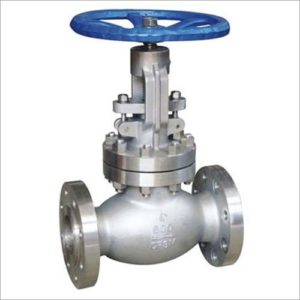

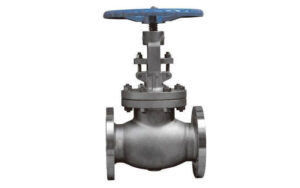

Cast Steel Globe Valve

Material of Construction

• Body & Bonnet: Cast Steel (commonly ASTM A216 Gr. WCB or equivalent)

• Stem: Stainless Steel (for corrosion resistance and strength)

• Seat & Disc: Hard-faced or stainless steel (can also be stellite or equivalent for durability)

• Gasket: Spiral wound or graphite for high-temperature/pressure sealing

• Bolts/Nuts: Alloy steel or stainless steel, depending on service requirements

• Handwheel: Coated or painted carbon steel

Size Available

• Typically available in a range of:

  • 2 inches to 24 inches (50 mm to 600 mm)

  • Specific size must be confirmed by catalog or markings; image does not specify exact size.

Pressure Rating

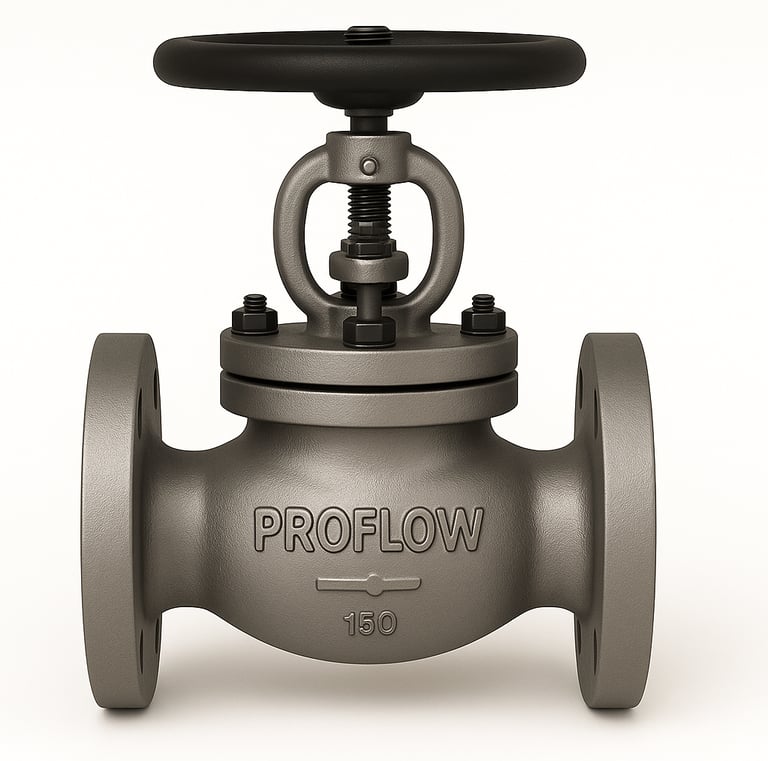

• Marked as 150, which indicates:

  • ANSI Class 150

  • Equivalent to a pressure rating of up to 285 psi (19.6 bar) at 100°F (38°C)

  • Pressure rating decreases at higher temperatures as per ASME B16.34
