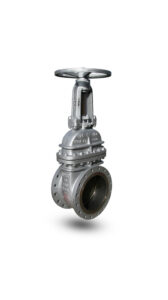

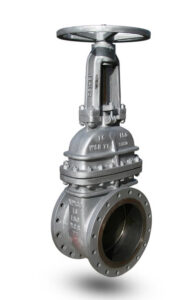

Gate Valve

Design Features

• Rising stem or non-rising stem configurations available

• Full port design for minimal flow restriction

• Solid wedge or flexible wedge for enhanced sealing

• Flanged ends as per ANSI B16.1 / BS standards

• Suitable for bi-directional flow

• Designed for easy operation and long service life

• Handwheel operated, gear-operated options for larger sizes

Cast Iron Gate Valve

Material of Construction

• Body: Cast Iron (IS 210 Gr. FG 260 / ASTM A126)

• Bonnet: Cast Iron

• Wedge/Disc: Cast Iron with Rubber or Metallic Seat

• Stem: Stainless Steel (AISI 410 / 304)

• Seat Ring: Bronze / Stainless Steel

• Gland Packing: Graphite / PTFE

• Handwheel: Cast Iron / Mild Steel

Pressure Rating

• PN 10 / PN 16

• Class 125 / 150 (depending on standard followed)

Size Available

• 50 mm to 600 mm (2” to 24”)

• Larger sizes available on request

Cast Steel Gate Valve

Design Features

• Full port, straight-through bore for minimal pressure drop

• Rising stem with clearly visible valve position

• Solid or flexible wedge for reliable sealing

• Flanged or threaded ends as per ANSI/DIN standards

• Corrosion-resistant construction for aggressive media

• Suitable for bi-directional flow

• Handwheel or gear-operated for easy control

Material of Construction

• Body: Stainless Steel (ASTM A351 Gr. CF8 / CF8M)

• Bonnet: Stainless Steel

• Wedge/Disc: Stainless Steel (CF8 / CF8M)

• Stem: Stainless Steel (AISI 410 / 316)

• Seat Ring: Stainless Steel (Hard-faced or integrally cast)

• Gland Packing: Graphite / PTFE

• Handwheel: Stainless Steel / Mild Steel with coating

Pressure Rating

• Class 150 / 300

• Higher classes available on request

Size Available

• 15 mm to 600 mm (½” to 24”)

• Larger sizes available on request
