Product Specification – Proflow Valves

Product Specifications

MFG STD :	API 600, BS 1414
TESTING & INSPECTION STD :	API 598
FACE TO FACE :	AS PER ANSI B 16.10
END CONNECTION :	FLANGED END AS PER B 16.5 RF/BS 1560 – 150# & 300#,400#,600#
BODY :	CI TO IS 210 GR. FG 220 / CS ASTM A 216 GR. WCB ASTM A 351 CF8/ ASTM A 351CF8M/ ASTM A 351 CF3/ ASTM A 351CF3M /CN7M/DUPLEX STEEL/MONEL K 400/MONEL K 500
SEATRING :	CS WITH 13% CR STEELS /SS 410 /AISI 304 /AISI 316/ AISI 304L/AISI 316L/CN7M/DUPLEX STEEL/MONEL K 400/MONEL K 500
WEDGE :	CS WITH 13% CR STEELS /SS 410 /AISI 304 /AISI 316/ AISI 304L/AISI 316L/CN7M/DUPLEX STEEL/MONEL K 400/MONEL K 500
SPINDLE :	AISI 410/AISI 304/AISI 316/AISI 304L/AISI 316L/CN7M/DUPLEX STEEL/MONEL K 400/MONEL K 500
BONNET :	CI TO IS 210 GR. FG 220 / CS ASTM A 216 GR. WCB ASTM A 351 CF8/ ASTM A 351CF8M/ ASTM A 351 CF3/ ASTM A 351CF3M /CN7M/DUPLEX STEEL/MONEL K 400/MONEL K 500
GASKET :	SPIRAL WOUND METALIC GASKET/ ANY SUITABLE GASKETS CUSTOMIZED
BONNET BUSH :	AISI 410/AISI 304/AISI 316/BRONZE
GLAND PACKING :	METALIC WIRE REINFORCED ASBESTOS / GRAPHOIL/ ANY SUITABLE GASKETS CUSTOMIZED
GLAND :	CS/SS 410 /AISI 304 /AISI 316/ AISI 304L/AISI 316L/CN7M/DUPLEX STEEL/MONEL K 400/MONEL K 500
YOKE BUSH :	CS/BRONZE ,SS ETC
CROSS BOLT /NUT :	CARBON STEEL /STAINLESS STEEL
EYE BOLY/NUT :	CARBON STEEL /STAINLESS STEEL
GREASE NIPPLE :	CARBON STEEL /STAINLESS STEEL
GRUB SCREW :	CARBON STEEL /STAINLESS STEEL
HAND WHEEL :	CI/CS/STAINLESS STEEL
HAND WHEEL NUT :	CARBON STEEL /STAINLESS STEEL
HYD–TEST PRESSURE :	FOR ASA 150# BODY:425 PSIG (30KG/CM2) SEAT:300 PSIG (21 KG /CM2) FOR ASA 300# BODY:1100 PSIG,(77 KG /CM2 ) SEAT:800 PSIG (55KG /CM2), FOR ASA 400#, HYD-TEST PRESS. :,BODY : 1450,Psig(102 Kg/Cm2),: SEAT,: 1060 Psig,(74 Kg/Cm2),FOR ASA 600#,HYD-TEST PRESS. : BODY : 2175,Psig (153 Kg/Cm2),:,SEAT,: 1600 Psig,(112 Kg/Cm2)
SIZE – RANGE :	15 NB TO 600 NB (1/2″ TO 24″)
ACCESSORIES :	MANUAL GEAR BOX OPERATION/ MOTORIZED OPERATION

Forge Gate Valve

Get Quote Now

BODY & BONNET	A 105 \| F 304 \| F 316 \| F 304L \| F 316L \| F 11 \| F 22
TRIMS	13 CR \| 18 CR 8 NI
MFG STD	API 602 \| BS 5352
TEST STD	API 598 \| BS 6755
END CONNECTION	SCREWED END \| SOCKETWELD END
HYD TEST PRESSURE	BODY: 3000 PSIG (211 KG/CM2) SEAT: 2000 PSIG (140 KG/CM2)
SIZE RANGE	15 MM TO 50 MM
OPERATION	HANDWHEEL
CLASS	800# \| 1500# \| 2500#

MATERIAL DETAIL
PART NO.	PART NAME	A 105	F304	F316	F11	F22
01	BODY BONNET	ASTM A105	A 182 Gr. F304	A 182 Gr. F316	A 182 Gr. F11	A 182 Gr. F22
02	DISC	ASTM A105	A 182 Gr. F304	A 182 Gr. F316	A 182 Gr. F11	A 182 Gr. F22
03	SEAT RING	A 182 Gr.F6a	A276-304	A276-316	A276-410	A276-410
04	STEM	A276-410	A276-304	A276-316	A276-410	A276-410
05	GLAND FLANGE	A 216 WCB	A351Gr.CF8	A351Gr.CF8M	A 216 WCB	A 216 WCB
06	BOLTS	A193 B7	A193 B8	A193 B8	A193 B16	A193 B16
07	NUTS	A193 B7	A193 B8	A193 B8	A193 B16	A193 B16
08	PACKING	GRAPHOIL RINGS
09	GASKET	S.S.304 / S.S.316 SPIRAL WOUND GASKET WITH GRAFOIL FILLER
10	HAND WHEEL	DUCTILE OR MALLEABLE IRON

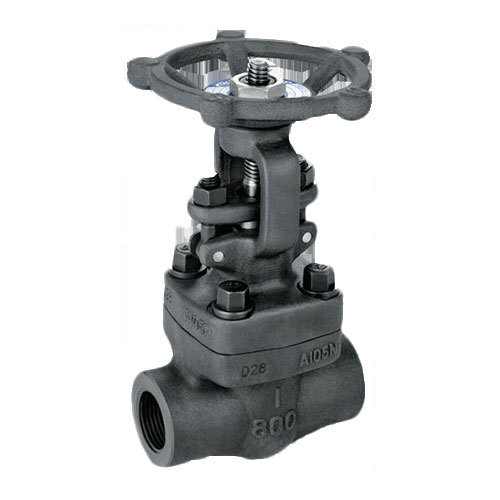

Forge Steel Gate Valve

Get Quote Now

BODY & BONNET	A 105 \| F 304 \| F 316 \| F 304L \| F 316L \| F 11 \| F 22
TRIMS	13 CR \| 18 CR 8 NI
MFG STD	API 602 \| BS 5352
TEST STD	API 598 \| BS 6755
END CONNECTION	SCREWED END \| SOCKETWELD END
HYD TEST PRESSURE	BODY: 3000 PSIG (211 KG/CM2) SEAT: 2000 PSIG (140 KG/CM2)
SIZE RANGE	15 MM TO 50 MM
OPERATION	HANDWHEEL
CLASS	800# \| 1500# \| 2500#

MATERIAL DETAIL
PART NO.	PART NAME	A 105	F304	F316	F11	F22
01	BODY BONNET	ASTM A105	A 182 Gr. F304	A 182 Gr. F316	A 182 Gr. F11	A 182 Gr. F22
02	DISC	ASTM A105	A 182 Gr. F304	A 182 Gr. F316	A 182 Gr. F11	A 182 Gr. F22
03	SEAT RING	A 182 Gr.F6a	A276-304	A276-316	A276-410	A276-410
04	STEM	A276-410	A276-304	A276-316	A276-410	A276-410
05	GLAND FLANGE	A 216 WCB	A351Gr.CF8	A351Gr.CF8M	A 216 WCB	A 216 WCB
06	BOLTS	A193 B7	A193 B8	A193 B8	A193 B16	A193 B16
07	NUTS	A193 B7	A193 B8	A193 B8	A193 B16	A193 B16
08	PACKING	GRAPHOIL RINGS
09	GASKET	S.S.304 / S.S.316 SPIRAL WOUND GASKET WITH GRAFOIL FILLER
10	HAND WHEEL	DUCTILE OR MALLEABLE IRON

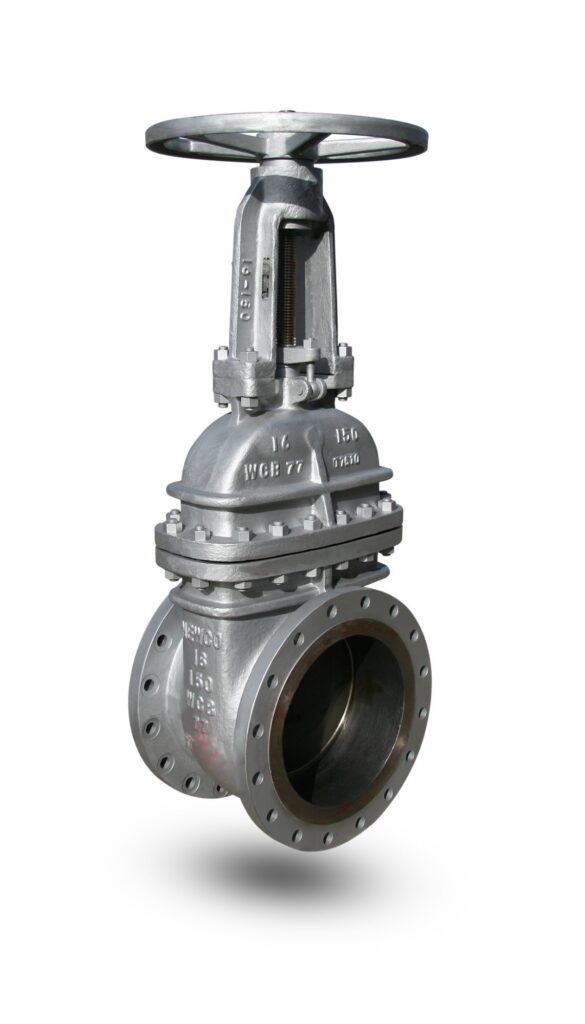

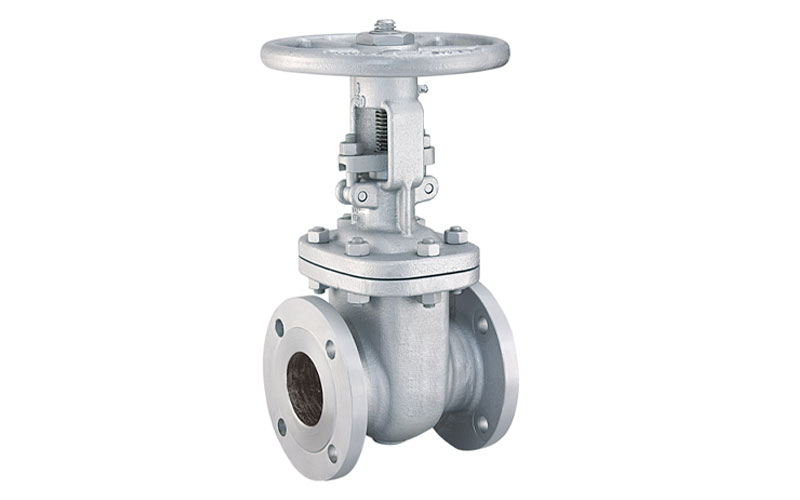

Gate Valve

Get Quote Now

PRODUCT DESCRIPTION
BODY & BONNET	CAST IRON\|CAST STEEL \| SS 304 \| SS 316 \| SS 304L \| SS 316L \| WC6 \|WC9 \|
TRIMS	13 CR \| 18 CR 8 NI
MFG STD	API 600
TEST STD	API 598
END CONNECTION	FLANGED END \| BUTTWELD END
HYD TEST PRESSURE	BODY: 425 PSIG (30 KG/CM2) SEAT: 300 PSIG (21 KG/CM2)
SIZE RANGE	25MM TO 600 MM
OPERATION	MANUAL \| GEAR
CLASS	ASA 150#
TYPE	OUTSIDE SCREWED AND YOKE TYPE (OS & Y TYPE)

MATERIAL DETAIL
PART NO.	PART NAME	WCB	WC6	WC9	CAST IRON	CF8	CF8M
01	BODY & BONNET	A 216 WCB	A 217 WC6	A 217 WC9	IS 210 GR FG 200	A 351 GR CF8	A 351GR CF8M
02	WEDGE	ASTM A 217 GR CA15	A 217 WC6	A 217 WC9	ASTM A 217 GR CA15	A 351 GR CF8	A 351 GR CF8M
03	SEAT RING	ASTM A 217 GR CA15	A 182 F11	A 182 F22	ASTM A 217 GR CA15	ASTM A 351 GR CF8	ASTM A 351 GR CF8M
04	STEM	ASTM A 276 T-410				ASTM A 276 T 304	ASTM A 276 T 316
05	BACK SEAT BUSHING	OVERLAY				ASTM A 276 T 304	ASTM A 276 T 316
06	GLAND FLANGE	A 216 WCB	A 217 WC6	A 217 WC9	IS 210 GR FG 200	A 351GR CF8	A 351 CF8M
07	STUD & NUTS	ASTM A 193 GR. B7 / ASTM A 194 GR. 2H					A 193 B16,A194 Gr.4/7
08	PACKING	GRAPHITE RING, METALLIC WIRE REINFORCED					PTFE
09	GASKET	S.S.304 / S.S.316 SPIRAL WOUND GASKET WITH GRAFOIL FILLER					PTFE
10	HAND WHEEL	DUCTILE OR MALLEABLE IRON					STAINLESS STEEL
11	YOKE	A 216 WCB	A 217 WC6	A 217 WC9	S.G. IRON	A 351 GR CF8	A 351 GR CF8M

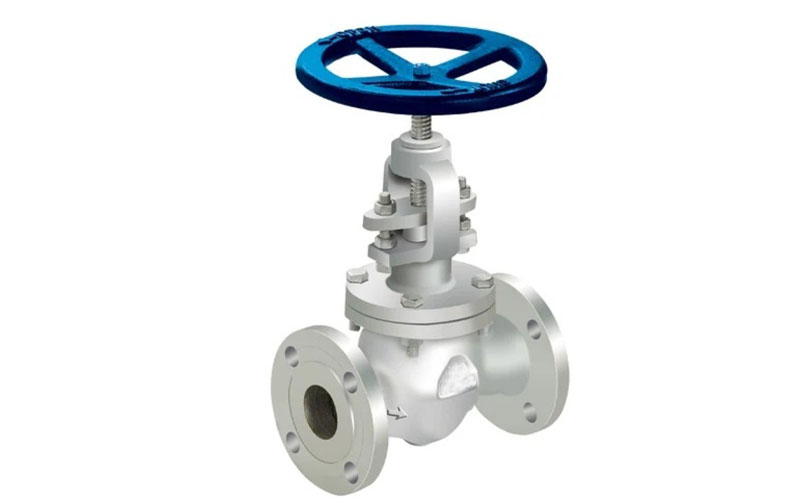

Cast Steel (WCB) Globe Valve

Get Quote Now

Swing	CF8
Body	WCB
Flange Ends	Class 150#
Seals	PTFE
Shell	30 kg/cm²
Seat	22 kg/cm²

CAST STEEL ND - 40 GLOBE VALVE

Get Quote Now

Class	ND-40
Metal	Stainless Steel
Valve Type	Flanged Ends
Valve Body	CAST STEEL
Valve Size	25mm

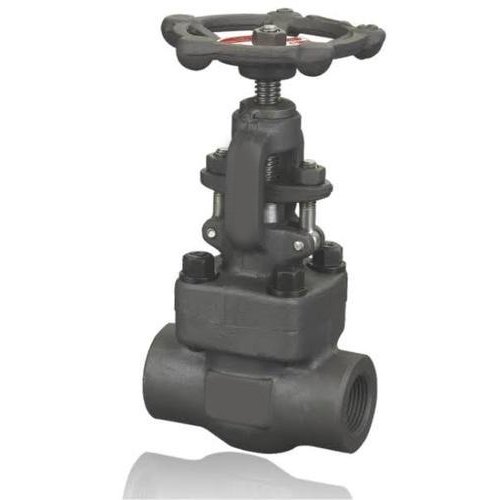

Forge Steel Globe Valve

Get Quote Now

FORGED GLOBE VALVE OUTSIDE SCREWED &YOKE TYPE BOLTED BONNET–ASA 150# & ASA 300#
MFG STD	BS 5352/MSS SP 84-1985
TESTING& INSPECTION STD.	API 598/BS 6755
END CONNECTIONS:	150#/300#/600# FLANGED END
FLANGETO FLANGE DISTANCE	ANSI B 16.5/ ANSI B 16.10
BODY	FORGED A 105, FORGED A 182 (F 304), FORGED A 182 (F 316), FORGED A 182 (F 304L), FORGED A 182 (F 316L), FORGED A 182 F22 /FORGED A 182 F11
SEAT	AISI 410/AISI 304/AISI 316/AISI 410/AISI 304L/AISI 316L/ COMPITIBLE MATERIAL AS PER REQUIREMENTS
VALVE	AISI 410/AISI 304/AISI 316/AISI 410/AISI 304L/AISI 316L/ COMPITIBLE MATERIAL,AS PER REQUIREMENTS
GASKET	SPIRAL WOUND SS 304 WITH CAF FILLER/ COMPITIBLE MATERIAL AS PER REQUIREMENTS
BODYBOLTS / NUTS	ASTM A 193 GR. B7 ASTM A 194 GR. 2H
GLAND PACKING	ASBESTOS GRAPHITED WITH INCONEL WIRE
GLAND BUSH	SS,410 /AISI 304 /AISI 316/AISI 410/AISI 304L/AISI 316L/ COMPITIBLE,MATERIAL REQUIRED AS PER REQUIREMENTS
GLAND PLATE	SS,410 / AISI 304 /AISI 316/AISI 410/AISI 304L/AISI 316L/ COMPITIBLE,MATERIAL REQUIRED AS PER REQUIREMENTS
BONNET	FORGED A 105, FORGED A 182 (F 304), FORGED A 182 (F 316), FORGED A 182 (F 304L), FORGED A 182 (F 316L), FORGED A 182 F22 /FORGED A 182 F11
STEM	AISI 410/AISI 316/AISI 316 COMPITIBLE MATERIAL REQUIRED AS PER REQUIREMENTS
YOKE NUT	AISI,304/AISI 316/EN 19 COMPITIBLE,MATERIAL AS PER REQUIREMENTS
HAND WHEEL	MALLEABLE IRON/C.S./STAINLESS STEEL
HAND,WHEEL NUT	CARBON STEEL/STAINLESS STEEL
EYE BOLT/NUT	CARBON STEEL/STAINLESS STEEL
HYD –TEST PRESSURE :	FOR 150# -HYDRAULIC TET PRESSURE:BODY:425PSIG ( 30 KG/CM2),SEAT :300 PSIG( 21 KG /CM2),FOR 300# -HYDRAULIC TET PRESSURE,:,BODY : 1100 PSIG (77 Kg/Cm2), SEAT,: 800 PSIG (56 Kg/Cm2),FOR ASA 600# HYD-TEST PRESS. :,BODY : 2175,Psig(153 Kg/Cm2),:,SEAT,: 1600 Psig,(112 Kg/Cm2)
SIZE RANGE	6 NB TO 50NB (1/4″ TO 2″)
ACCESSORIES	MANUAL GEAR BOX OPERATION/ MOTORIZED OPERATION

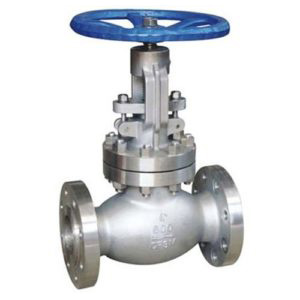

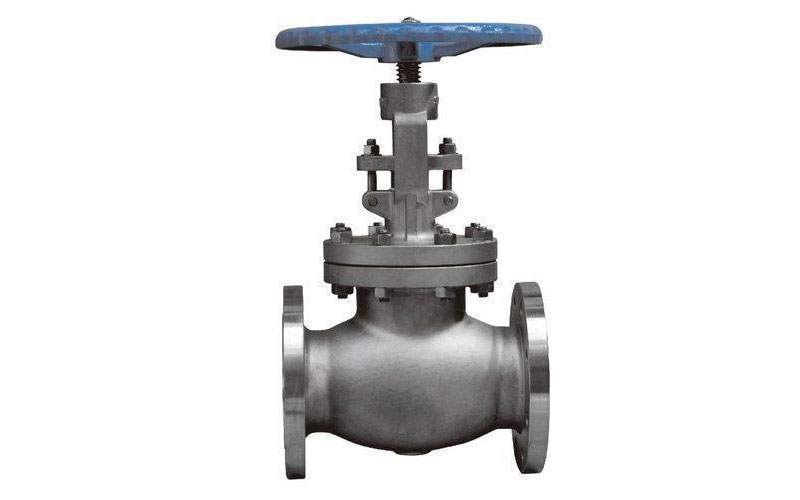

WCB Body Globe Valve Flanged End

Get Quote Now

Product Description
Parts	Material
BODY	CAST IRON\|CAST STEEL \| SS 304 \| SS 316 \| SS 304L \| SS 316L \| WC6 \|WC9 \|
TRIMS	13 CR \| 18 CR 8 NI
MFG STD	BS 1873
TEST STD	BS 6755
END CONNECTION	FLANGED END \| BUTTWELD END
HYD TEST PRESSURE	BODY: 425 PSIG (30 KG/CM2)
HYD TEST PRESSURE	SEAT: 300 PSIG (21 KG/CM2)
OPERATION	MANUAL \| GEAR
CLASS	PN 10, PN 16, ND 40, ASA 150#, 300#, 600#
SIZE RANGE	25MM TO 600 MM

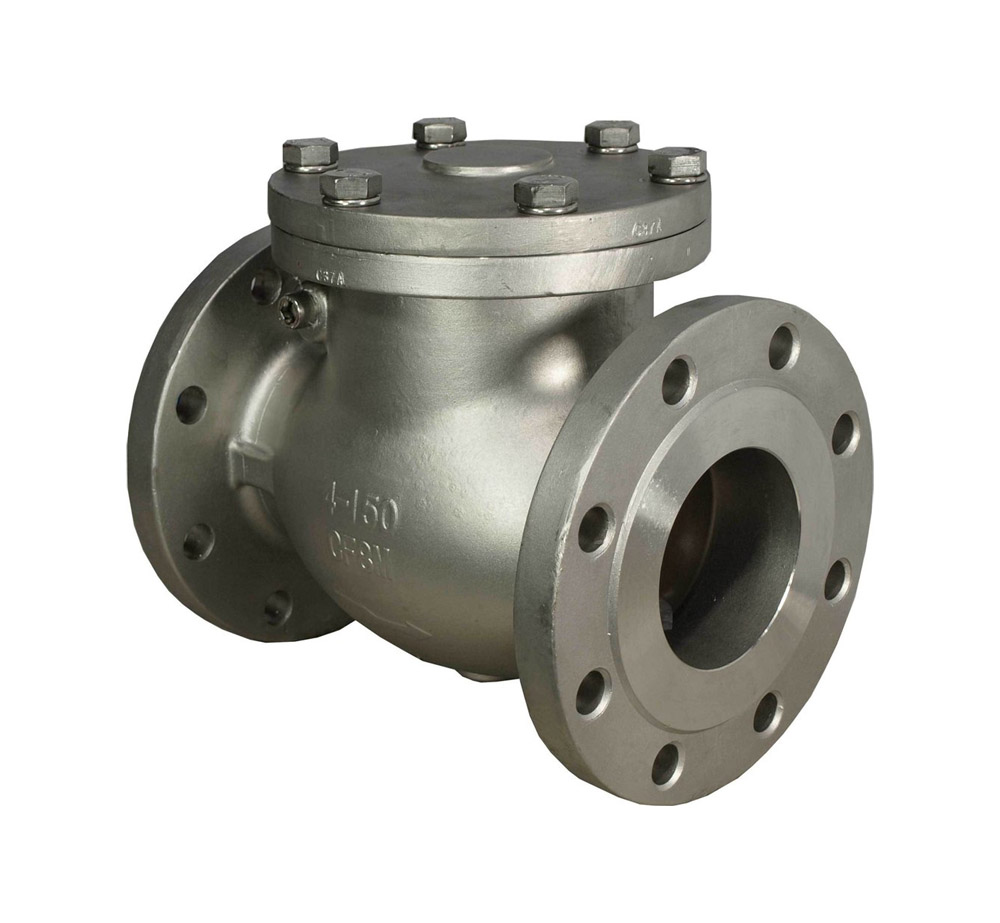

Swing Check Valve

Get Quote Now

PRODUCT DESCRIPTION
BODY & COVER	CAST IRON\|CAST STEEL \| SS 304 \| SS 316 \| SS 304L \| SS 316L \| WC6 \|WC9
TRIMS	13 CR \| 18 CR 8 NI
MFG STD	BS 1868
TEST STD	BS 6755
END CONNECTION	FLANGED END TO ASME B 16.5
HYD TEST PRESSURE	BODY: 425 PSIG (30 KG/CM2) SEAT: 300 PSIG (21 KG/CM2)
SIZE RANGE	25MM TO 600 MM
TYPE	“SWING” TYPE
CLASS	PN 10 \| PN 16 \| ASA 150# \| 300# \| 600#

MATERIAL DETAIL
PART NO.	PART NAME	CAST IRON	WCB	DUCTILE IRON		CF8	CF8M
01	BODY	IS 210 GR FG 200	A 216 GR WCB	GGG 40		A 351 CF8	A 351 CF8M
02	COVER	IS 210 GR FG 200	A 216 GR WCB	GGG 40		A 351 CF8	A 351 CF8M
03	DISC	ASTM A 216 Gr. WCB + 13% Cr. Facing
04	SEAT RING	ASTM A 217 GR CA 15	ASTM A 217 GR CA 15	ASTM A 217 GR CA 15	ASTM A 351 GR CF8		ASTM A 351 GR CF8M
05	HINGE PIN	AISI 410(13% Cr.) / S.S. 304 / S.S. 316
06	DISC HINGE	ASTM A 216 Gr. WCB			ASTM A 351 Gr. CF8 / CF8M
07	COVER GASKET	S.S.304 / S.S.316 SPIRAL WOUND GASKET WITH GRAPHOIL FILLER			PTFE
08	COVER STUDS & NUTS	ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H			A 193 B16,A194 Gr.4/7

Wafer Check Valve

Get Quote Now

PRODUCT DESCRIPTION
BODY	CAST IRON\|CAST STEEL \| MS \| SS 304 \| SS 316 \| SS 304L \| SS 316L
DISC	CI \| MS\| CS \| SS 304 \| SS 316 \| SS 304L \| SS 316L
“O” RING	NITRILE \| PTFE \| VITON \| EPDM \| SILICON \| METAL TO METAL
HING PIN	AISI 410 \| AISI 304 \| AISI 316
MFG STD	API 6D
TEST STD	API 6D
END CONNECTION	WAFER TYPE
HYD TEST PRESSURE	BODY: 225 PSIG (15 KG/CM2) SEAT: 150 PSIG (10 KG/CM2)
SIZE RANGE	15MM TO 1050 MM
TYPE	WAFER TYPE
CLASS	PN 10 \| PN 16 \| PN 20 \| PN 40 \| 150# \| 300#

MATERIAL DETAIL
PART NO.	PART NAME	MATERIAL
01	BODY	MILED STEEL / CAST IRON (IS:210 GR. FG. 220) / CAST STEEL (ASTM A 216 GR. WCB), S.S. ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M
02	DISC	CAST IRON (IS:210 GR. FG. 220) / CAST STEEL (ASTM A 216 GR. WCB), S.S. ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M
03	‘O’RING	NITRILE/EPDM/VITON/SILICON/PTFE/METAL TO METAL
04	HINGEPIN	AISI 304 / AISI 316

PRIMARY SERVICE RATING & TEST PRESSURE
CLASS	WORKING TEMPERATURE	HYD. TEST PRESSURE
		BODY	SEAT
150	20°C to 180°C	225 PSIG	150 PSIG

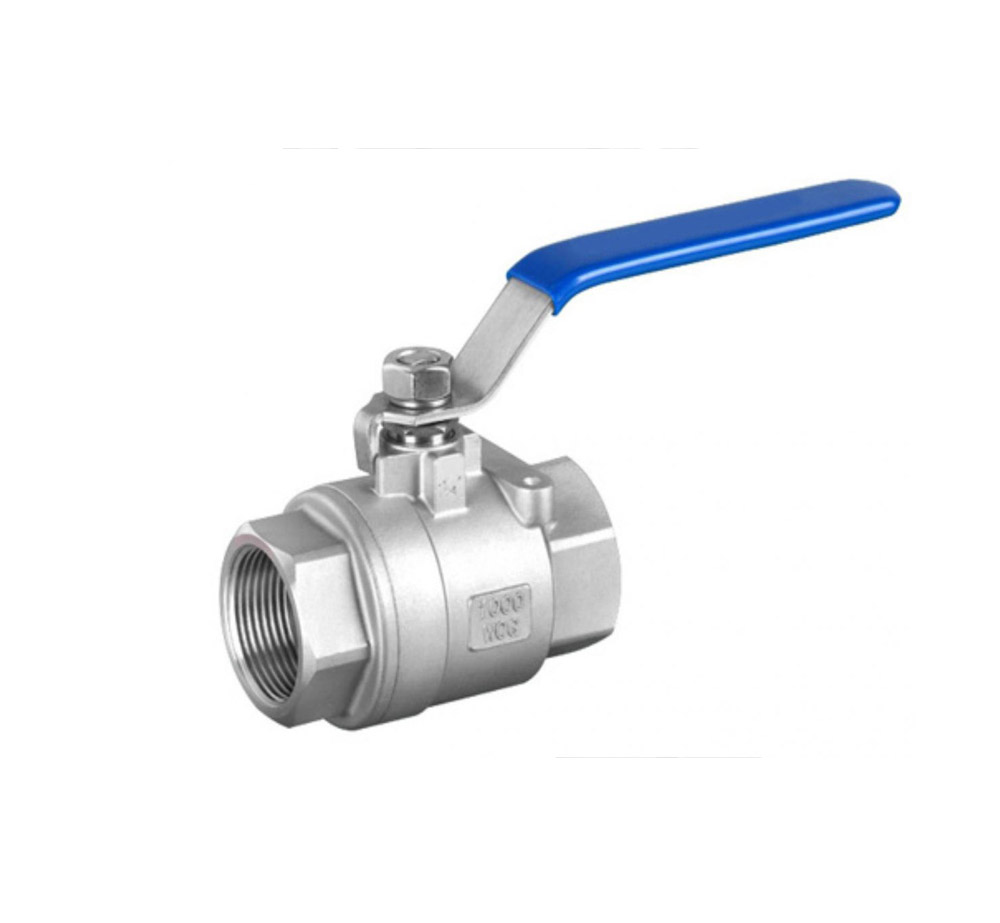

2 Piece Design Ball Valve

Get Quote Now

PRODUCT DESCRIPTION
BODY	CAST IRON \| CAST STEEL \| SS 304 \| SS 316 \| SS 316L
BALL	AISI 410 \| AISI 304 \| AISI 316 \| SS 304L \| SS 316L
STEM	SS 410 \| SS 304 \| SS 316 \| SS 304L \| SS 316L
SEAT & SEAL	PTFE \| RPTFE \| GFT \| TEFLON \| VITON \| METAL TO METAL
MFG STD	BS 5351
TEST STD	BS 6755
END CONNECTION	SCREWED END TO BSP, NPT (F) \| SOCKETWELD END
HYD TEST PRESSURE	BODY: 425 PSIG (30 KG/CM2) SEAT: 300 PSIG (21 KG/CM2)
OPERATION	LEVER
TYPE	SINGLE PIECE \| TWO PIECE \| THREE PIECE \| 3 WAY \| 4 WAY
SIZE RANGE	15 MM TO 300 MM

MATERIAL DETAIL
PART NO.	PART NAME	CAST IRON	CAST STEEL (WCB)	MS	CF8	CF8M
01	BODY	IS 210 GR FG 200	ASTM A 216 GR WCB	MS – EN8	A 351 CF8	A 351 CF8M
02	CONNECTORS	IS 210 GR FG 200	ASTM A 216 GR WCB	MS – EN8	A 351 CF8	A 351 CF8M
03	BALL	AISI 304 / AISI 316 / S.S.304 / S.S.316			S.S.304/ CF3	S.S.316/ CF3M
04	STEM	AISI 304 / AISI 316 / S.S.304 / S.S.316			S.S.304 / CF3	S.S.316 / CF3M
05	GLAND	AISI 304 / AISI 316 / S.S.304 / S.S.316
06	BALL SEALS	PTFE / RPFE / VITON / EPDM (on Request)
07	BODY SEALS	PTFE / RPFE / VITON / EPDM (on Request)
08	STEM PACKING	PTFE / RPFE / VITON / EPDM (on Request)
09	GLAND PACKINGS	PTFE / RPFE / VITON / EPDM (on Request)
10	GLAND NUT & STEM NUT	AISI 410 / AISI 304 / AISI 316
11	HANDLE	S.S. / M.S. / C.S.
12	SLEEVE	PVC
13	BODY STUDS & NUTS	ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H / S.S. / C.S.

3 Piece Ball Valve Flanged End

Get Quote Now

Three Piece Design Ball Valve Flanged End ASA 150# AND 300# Blow Out Proof SETM, Floating Ball Full Port & Reduce Port Design
BODY :	INVESTMENT CASTING IC CF8- 304/IC CF8M -SS 316 /IC CF3- SS 304L/IC CF3M- SS 316L ,CS ASTMA 216 GR WCB
BALL :	AISI 304/SS 316 / SS 304L/SS 316L –SOLID/ HOLLOW BALL
STEM:	AISI 304/SS 316 / SS 304L/SS 316L
SEAT&SEAL :	PTFE /RPTFE/GLASSFILLED PTFE/CFT
MFG STD :	GENERALLY CONFORMING TO BS 5351 ,API 602
TESTING :	BS 6755
OPERATION:	LEVER MS WIRH ZINC PLATED/SS WITH PVC SLEEVE/ GEAR OPERATED/ PNEUMATIC ACTUATOR/ELECTRIC ACTUATOR
ENDS :	ASA 150#, 300#
HYD TEST PRESSURE :150#	BODY:425 PSIG(30KG/CM2) FOR ASA 150# SEAT:300 PSIG (21 KG/CM2) FOR 150#
HYD TEST PRESSURE :300#	BODY : 1100 Psig (77 Kg/Cm2) FOR 300# SEAT : 800 Psig (56 Kg/Cm2)
SIZE RANGE :	12 NB TO 200 NB (1/2″ TO 8″ )

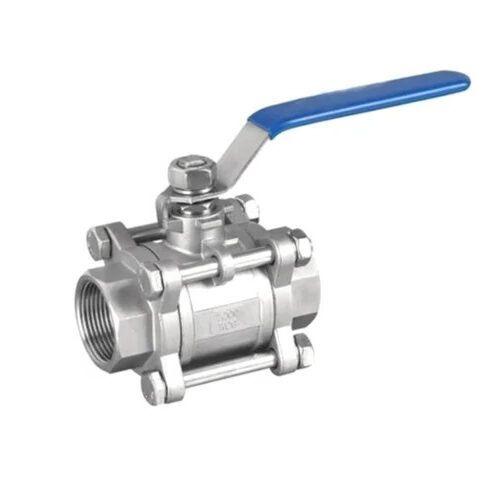

3 Piece Handle Ball Valve Screwed End

Get Quote Now

PART	MATERIAL
BODY	CAST IRON \| CAST STEEL \| SS 304 \| SS 316 \| SS 316L
BALL	AISI 410 \| AISI 304 \| AISI 316 \| SS 304L \| SS 316L
STEM	SS 410 \| SS 304 \| SS 316 \| SS 304L \| SS 316L
SEAT & SEAL	PTFE \| RPTFE \| GFT \| TEFLON \| VITON \| METAL TO METAL
MFG STD	BS 5351
TEST STD	BS 6755
END CONNECTION	SCREWED END TO BSP, NPT (F) \| SOCKETWELD END
HYD TEST PRESSURE	BODY: 425 PSIG (30 KG/CM2)
HYD TEST PRESSURE	SEAT: 300 PSIG (21 KG/CM2)
OPERATION	OPERATION
TYPE	SINGLE PIECE
SIZE RANGE	15 MM TO 300 MM

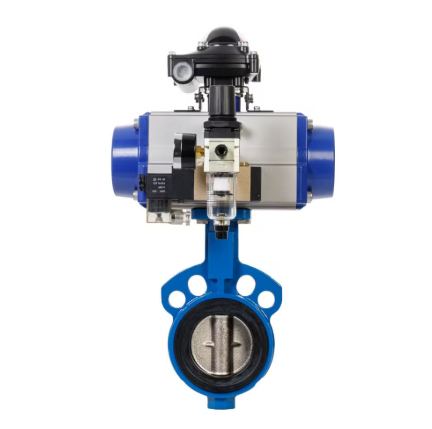

Double Acting Pneumatic Actuator Butterfly Valve

Get Quote Now

Butterfly Valve Pressure Rating PN 10, PN16 & PN25 with PNEUMATIC ACTUATOR OPERATION
BODY:	IS 210 GR FG 200/220/CS ASTMA 216 GR WCB /SG IRON/ SS 304 / SS 316
DISC:	IS 210 GR FG 200/220/CS ASTMA 216 GR WCB/SG IRON/ SS 304 / SS 316
SEAT:	MOLDED/REPLACEABLE NITRILE/EPDM/SILICON/VITON / HYPOLON
SHAFT:	AISI 410 /AISI 304/AISI 316
MFG STD:	BS 5155
INSP &TEST STD:	BS 6755/BS 5155
OPERATION:	FLOW –CONTROL LEVER / GEAR OPERATED/ PNEUMATIC ACTUATOR/ELECTRIC ACTUATOR
ENDS:	WAFER TYPE TO SUIT ANSI B 16.1
HYD TEST PRESSRE:	BODY:225 PSIG (16 KG/CM2)] SEAT: 165 PSIG (11.5 KG/CM2)
SIZE RANGE:	25 NB TO 1500 NB(1″ to 60″)

Double Flange Butterfly Valves

Get Quote Now

Double Flanged Butterfly Valve PN 10 & PN 16, Center Design
BODY:	IS 210 GR FG 200/220/CS ASTMA 216 GR WCB /SG IRON/ SS 304 / SS 316
DISC:	IS 210 GR FG 200/220/CS ASTMA 216 GR WCB/SG IRON/ SS 304 / SS 316
SEAT:	MOLDED/REPLACEABLE NITRILE/EPDM/SILICON/VITON / HYPOLON
SHAFT:	AISI 410 /AISI 304/AISI 316
MFG STD:	BS 5155
INSP &TEST STD:	BS 6755/BS 5155
OPERATION:	MANUAL GEAR OPERATED/ PNEUMATIC ACTUATOR/ELECTRIC ACTUATOR
ENDS:	FLANGED END TO PN 10/ PN 16 / ASA 150#
HYD TEST PRESSRE:	BODY:225 PSIG (16 KG/CM2)] SEAT: 165 PSIG (11.5 KG/CM2)
SIZE RANGE:	25 NB TO 1200 NB(1″ to 48″)

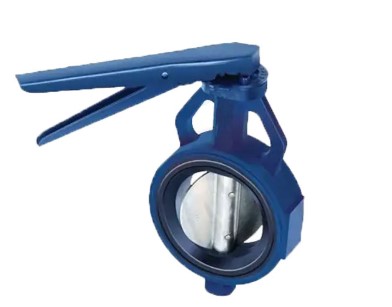

Wafer Type Butterfly Valve

Get Quote Now

Double Flanged Butterfly Valve PN 10 & PN 16, Center Design
BODY:	IS 210 GR FG 200/220/CS ASTMA 216 GR WCB /SG IRON/ SS 304 / SS 316
DISC:	IS 210 GR FG 200/220/CS ASTMA 216 GR WCB/SG IRON/ SS 304 / SS 316
SEAT:	MOLDED/REPLACEABLE NITRILE/EPDM/SILICON/VITON / HYPOLON
SHAFT:	AISI 410 /AISI 304/AISI 316
MFG STD:	BS 5155
INSP &TEST STD:	BS 6755/BS 5155
OPERATION:	MANUAL GEAR OPERATED/ PNEUMATIC ACTUATOR/ELECTRIC ACTUATOR
ENDS:	FLANGED END TO PN 10/ PN 16 / ASA 150#
HYD TEST PRESSRE:	BODY:225 PSIG (16 KG/CM2)] SEAT: 165 PSIG (11.5 KG/CM2)
SIZE RANGE:	25 NB TO 1200 NB(1″ to 48″)

Lug Type Butterfly Valve

Get Quote Now

PRODUCT DESCRIPTION
BODY	CAST IRON \| DUCTILE IRON \| CAST STEEL \| SS 304 \| SS 316
DISC	S.G.IRON \| SS 304 \| SS 316
STEM	SS 410 \| SS 304 \| SS 316
SEAT & SEAL	NITRILE \| PTFE \| TEFLON \| VITON
MFG STD	BS 5155
TEST STD	BS 6755
END CONNECTION	WAFER TYPE \| WAFER LUGGED TYPE
HYD TEST PRESSURE	BODY: 340 PSIG (24 KG/CM2) SEAT: 230 PSIG (16 KG/CM2)
OPERATION	LEVER \| GEAR
PRESSURE RATING	PN 10\| PN 16 \| PN 20 \| PN 25
SIZE RANGE	15 MM TO 300 MM

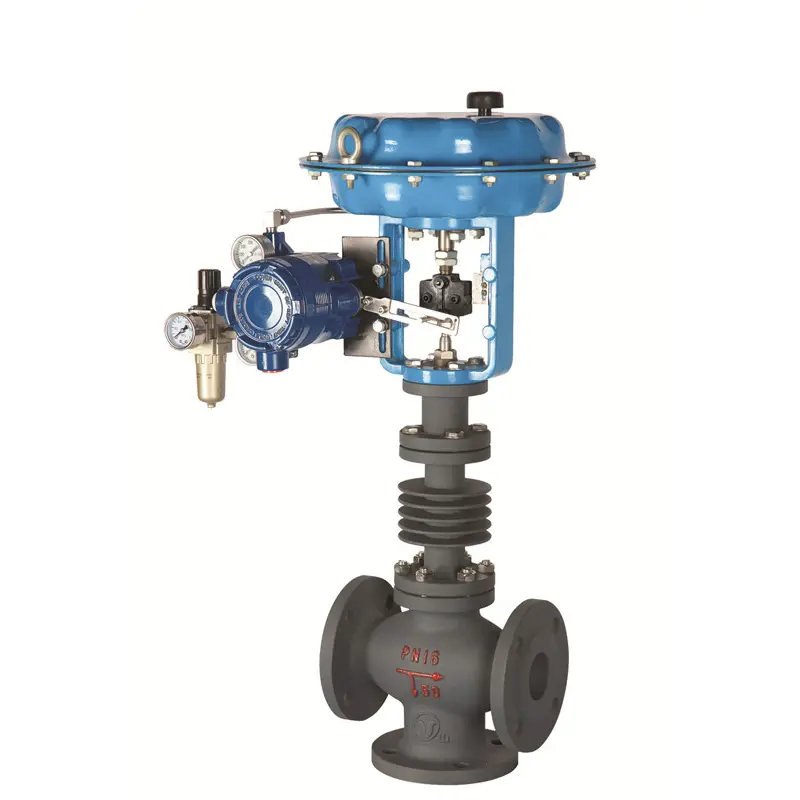

3 way Pneumatic Diaphragm Control Valve for Mixing/Diverting Duty

Get Quote Now

CONTROL VALVE CAST STEEL 3-WAY PNEUMATIC, DIAPHRAGM OPERATED, BOLTED BONNET FOR MIXING /DIVERTING, ASA 150# & 300#
BODY	ASTM A 216 GR WCB /SS 304/SS 316
TRIMS	AISI 410 /304/ 316
DIAPHRAM	REINFORCED RUBBER HEAVY DUTY
MFG STD	GENERALLY CONFORMING TO IS 10189 (PART-1)
INSP TEST STD	GENERALLY CONFORMING IS 10189 –PART -1 /ANSI B 16.104/FCI 70-2
PRESSURE RATING	150#/300#/PN 16
ENDS	FLANGED TO0 ANSI B 16.5 RF (150#)/300#) FLANGED TO DIN 2543 FLANGED TO BS TO TABLE “F”
HYD TEST PRESS	BODY:425 PSIG (30 KG /CM2) FOR 150# TABLE “F” BODY;1100 PSIG (799 KG /CM2) FOR 300# BODY: 32 KG /CM2 ( FOR PN 16)
ACCESSORIES	The valve can be supplied with our without Manual Hand wheel mounting.Optional accessories like Positioner/ Limit Switch/ Motion Transmitter/ Volume Booster/ Air lock Relay and any optional accessories can be supplied with the a valve as per customer request
SIZE RANGE	25 DN 150 DN (1″ TO 6″)

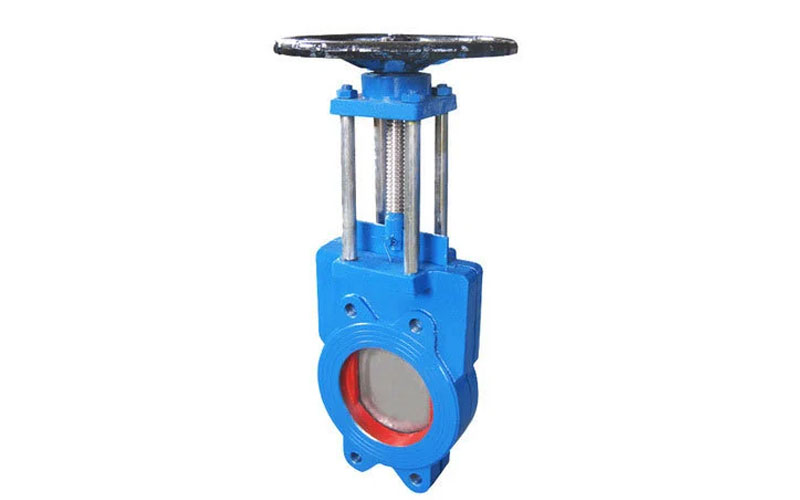

Bi Directional Knife Edge Gate Valve

Get Quote Now

PART	STAINLESS STEEL LIST:
Body	CAST IRON \| S.G. IRON \| DI \| CAST STEEL \| SS 304 \| SS 316 \| SS 304L \| SS 316L \| WC6 \|WC9
Knife Plate	WCB \| AISI 304 \| AISI 316 \| SS 304L \| SS 316L
Seals	PTFE
Seat	NITRILE \| BUNA N \| EPDM \| VITON \| METAL TO METAL
End Conn.	Wafer Lugged \| Water Type
Size Range	25 MM to 600 MM
Type	Bi-Directional

Double Acting Cylinder Operated Knife Edge Gate Valve

Get Quote Now

BODY :	CI IS 210 GR FG220 /CF 8 – SS 304/CF8M-SS 316/SS 304L-CF3M/SS 316L-CF3M/ALLOY STEEL/DUPLEX STEEL/ANY SPECIAL STEELS.
SEATL :	INTEGRAL TO BODY, WITH OR WITH EPDM/NITRILE/SILICON/VITON/PTFE SEAL.
GATE PLATE :	304/ SS 316/SS 304L /SS 316L /ALLOY STEEL/DUPLEX STEEL/ANY SPECIAL STEELS.
SCREW SPINDLE :	304/ SS 316/SS 304L /SS 316L /ALLOY STEEL/DUPLEX STEEL/ANY SPECIAL STEELS.
NUT :	BRASS /ANY SUITABLE MATERIALS
YOKE/BONNET :	PLATE TYPE OF MS / 304/ SS 316/SS 304L /SS 316L /ALLOY STEEL/DUPLEX STEEL/ANY SPECIAL STEELS.
GLAND FOLLOWER :	304/ SS 316/SS 304L /SS 316L /ALLOY STEEL/DUPLEX STEEL/ANY SPECIAL STEELS.
HAND WHEEL:	CAST IRON FG 200 GR /SS 304
GLAND PACKING:	COTTON GRAPHITE ROPE TO PROVIDE ZERO LEAKAGE FROM GLAND SIDE
ENDS :	WAFER TYPE LUGGED DESIGN
END CONNECTIONS :	DRILLED TO ASA 150# /PN10/TABLE D /TABLE E OR ANY OTHER AS PER CUSTOMISED.
TEMPERATURE RANGE:	UPTO 900 DEGREE

Double Flange Knife Edge Gate Valve

Get Quote Now

Body	CAST IRON \| S.G. IRON \| DI \| CAST STEEL \| SS 304 \| SS 316 \| SS 304L \| SS 316L \| WC6 \|WC9
Knife Plate	WCB \| AISI 304 \| AISI 316 \| SS 304L \| SS 316L
Seals	PTFE
Seat	NITRILE \| BUNA N \| EPDM \| VITON \| METAL TO METAL
End Conn.	Double Flange
Size Range	25 MM to 600 MM
Type	Double Flange

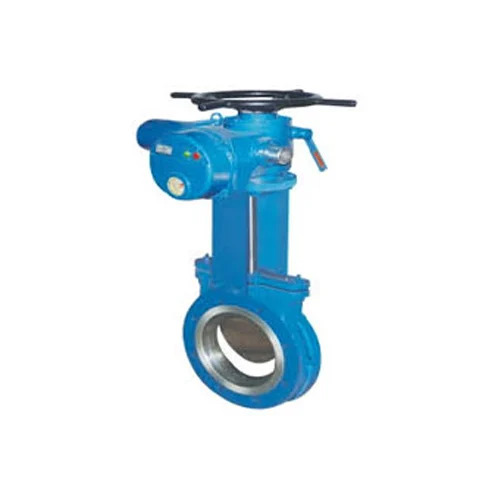

Electrical Operated Knife Edge Gate Valve

Get Quote Now

BODY :	CI IS 210 GR FG220 /CF 8 – SS 304/CF8M-SS 316/SS 304L-CF3M/SS 316L-CF3M/ALLOY STEEL/DUPLEX STEEL/ANY SPECIAL STEELS.
SEATL :	INTEGRAL TO BODY, WITH OR WITH EPDM/NITRILE/SILICON/VITON/PTFE SEAL.
GATE PLATE :	304/ SS 316/SS 304L /SS 316L /ALLOY STEEL/DUPLEX STEEL/ANY SPECIAL STEELS.
SCREW SPINDLE :	304/ SS 316/SS 304L /SS 316L /ALLOY STEEL/DUPLEX STEEL/ANY SPECIAL STEELS.
NUT :	BRASS /ANY SUITABLE MATERIALS
YOKE/BONNET :	PLATE TYPE OF MS / 304/ SS 316/SS 304L /SS 316L /ALLOY STEEL/DUPLEX STEEL/ANY SPECIAL STEELS.
GLAND FOLLOWER :	304/ SS 316/SS 304L /SS 316L /ALLOY STEEL/DUPLEX STEEL/ANY SPECIAL STEELS.
HAND WHEEL:	CAST IRON FG 200 GR /SS 304
GLAND PACKING:	COTTON GRAPHITE ROPE TO PROVIDE ZERO LEAKAGE FROM GLAND SIDE
ENDS :	WAFER TYPE LUGGED DESIGN
END CONNECTIONS :	DRILLED TO ASA 150# /PN10/TABLE D /TABLE E OR ANY OTHER AS PER CUSTOMISED.
TEMPERATURE RANGE:	UPTO 900 DEGREE

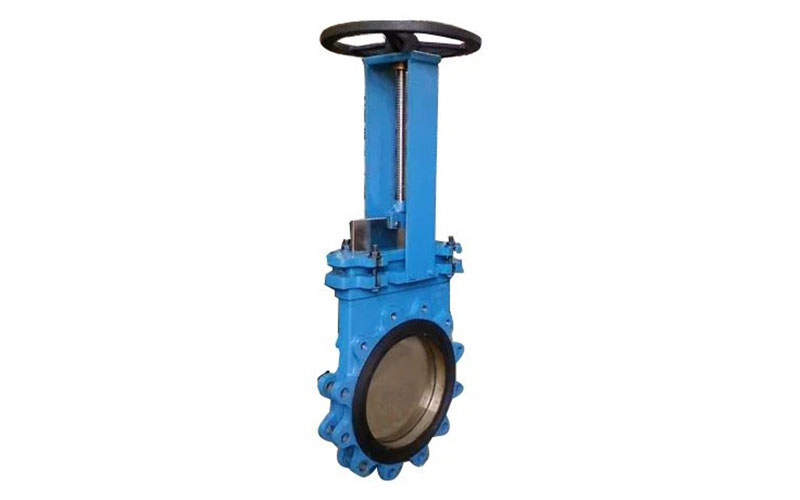

Uni Directional Knife Edge Gate Valve

Get Quote Now

1 – BODY	CF8, CF8M, WCB, OTHER ON REQUEST
2 – GATE	AISI 304 AISI 316
3 – SEAT	METAL TO METAL/SOFT SEAT
4 – PACKING	PTFE IMPREG. SYNTH. FIBRE
5 – GLAND FOLLOWER	DUCTILE IRON CF 8,CF8M, WCB
6 – STEA	AISI 304, AISI 316
7 – STEM NUT	FORGE / BRASS / EN-9/D.I
8 – YOKE	MILD STEEL, S.S. 410
9 – SEAT RING	AISI 304, AISI 316
10 – OPERATED	PNEUMATIC/ MANUAL / BEVAL GEAR
11 – HAND WHEEL	HIGHTENSILE
12- HAND WHEEL	S.G. IRON
13- STEM PROTECTOR	MILD STEEL (ZINC PLATED)

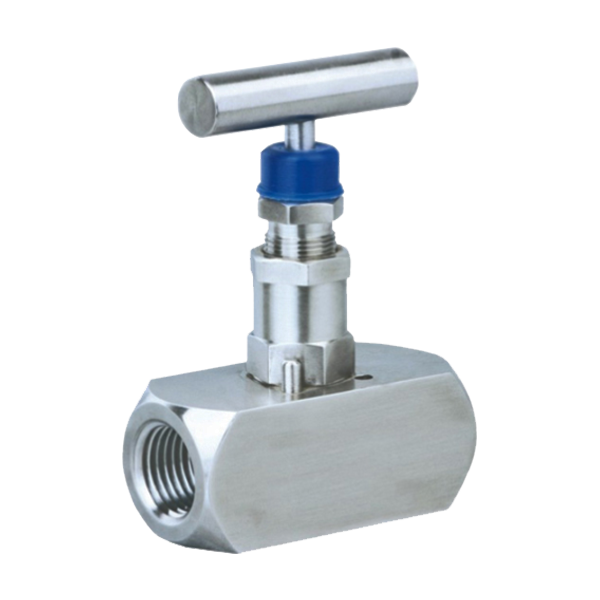

Needle Valve

Get Quote Now

NEEDLE VALVE SCREW END
SIZES	1/8″ TO 2″ (3 mm to 50 mm) Max Pressure:700 BAR-10000 PSI
MATERIAL OF CONSTRUCTIONS- BODY & BONNET	AISI 304, AISI-316(CF 8 M), AISI 316 L (A 351 CF3, CF3M ), GUN METAL, ALUMINUM BRONZE, HAST ALLOYS, CARBON STEEL, FORGED CARBON STEEL-A 105.
MANUFACTURING & TESTING STANDARD	AS PER BS 5750, ISO 9002, CAN Z3 299.3
END CONNECTION	Screw end BSP-F, NPT –F, BSPP-, BSPT-F SOCKET WELD END , FERRUL END, BUTT WELD END, AND MALE FEMALE CONNECTIONVALVES ALSO AVAILABLE
SOCKET WELD END	ANSI B-16.11, ANSI B 2.1
GLAND NUT	AISI 304/AISI 316
BODY GASKET	PTFE/ASBESTOS/GFT ETC.
HAND WHEEL	BAKELITE/ ROD ROUND BAR HANDLE, METAL POWDER COATED WHEEL OF MILD STEEL
HAND WHEEL NUT	S.S./M.S.
SPINDLE	AISI 304/AISI 316

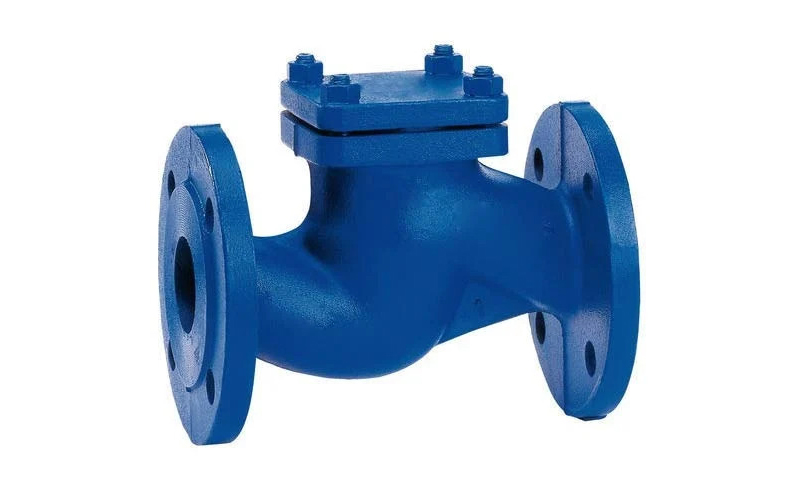

Lift Type Non Return Valve

Get Quote Now

FORGED, LIFT-UP TYPE BOLTED COVER NON RETURN VALVE SCREW END OR SOCKET WELD END – ASA 800#
BODY & BONNET	FORGED ASTMA -105/ASTMA 182 GR. F 304 / ASTMA 182 GR. F 316 / ASTMA 182 GR. F 304L / ASTMA 182 GR. F 316L
TRIMS	SS 410/SS 304 / SS 316/ SS 304L/SS 316L
MFG STD	BS 5352
INSP &TEST STD	BS 6755
ENDS	SCEWED TO BSP ,BSPT,NPT FEMAIL ,S/W TO ANSI B 16.11
HYD –TEST PRESSURE	BODY:3000 PSIG ( 211KG/CM2) FOR SEAT :2000 PSIG (140 KG /CM2)
SIZE RANGE	6 NB TO 50 NB (1/4″ TO 2″)

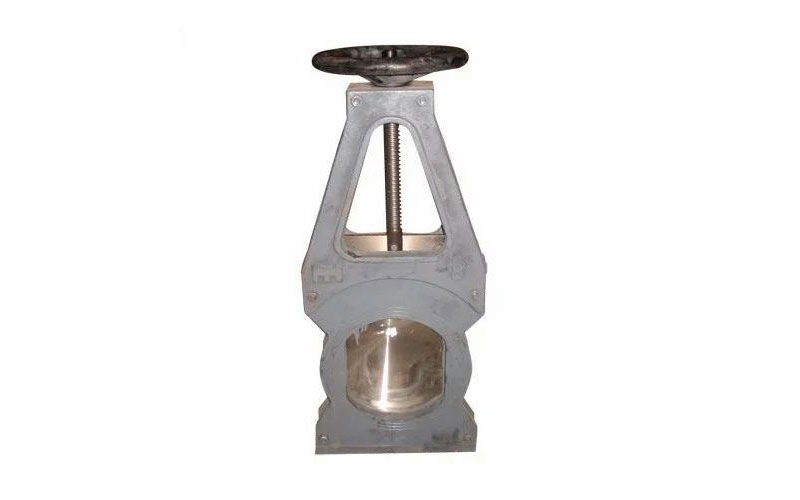

Pulp Valve

Get Quote Now

BODY	CAST IRON I CAST STEEL \| SS 304 \| SS 316 \| SS 304L \| SS 316L \| WC6 \|WC9
KNIFE PLATE	AISI 410 \| AISI 304 \| AISI 316 \| SS 304L \| SS 316L
SEAT RING	SS 304 \| SS 316 \| SS 304L \| SS 316L
MFG STD	STD MSS SP 81
TEST STD	STD MSS SP 81
END CONNECTION	WAFER LUGGED \| WAFER TYPE
HYD TEST PRESSURE BODY	135 PSIG (9 KG/CM2) SEAT: 90 PSIG (6 KG/CM2)
SIZE RANGE	25MM TO 600 MM
OPERATION	MANUAL \| GEAR
TYPE	BI-DIRECTIONAL

Safety Valve

Get Quote Now

SAFETY VALVE CAST STEEL – STRAIGHT/ S TYPE PATTERN SPRING LOADED –OPEN DISCHARGE BOLTED BONNET – ASA 150# & 300 BOLTED BONNET
END CONNECTION	FLANGED END AS PER B 16.5 RF/BS 1560 – 150# & 300#, FLANGED TO DIN 2545
BODY & BONNET	CI TO IS 210 GR. FG 220/CS ASTM A 216 GR. WCB ASTM A 351 CF8/ ASTM A 351CF8M/ ASTM A 351 CF3/ ASTM A 351CF3M /CN7M/DUPLEX STEEL/MONEL K 400/MONEL K 500
SEAT	CS WITH 13% CR STEELS /SS 410 /AISI 304 /AISI 316/ AISI 304L/AISI 316L/CN7M/DUPLEX STEEL/MONEL K 400/MONEL K 500
SPRING	SPRING STEELS
TRIMS	AISI 410/AISI 304/AISI 316/AISI 304L/AISI 316L/CN7M/DUPLEX STEEL/MONEL K 400/MONEL K 500/GUN METAL/NI -BRONZE/ALUMINIUM BRONZE.
GASKET	SPIRAL WOUND METALLIC GASKET/ ANY SUITABLE GASKET CUSTOMIZED
HYD –TEST PRESSURE	FOR ASA 150# BODY:425 PSIG (30KG/CM2) SEAT:300 PSIG (21 KG /CM2)
SIZE: RANGE	15 NB TO 100 NB (1/2″ TO 4″)

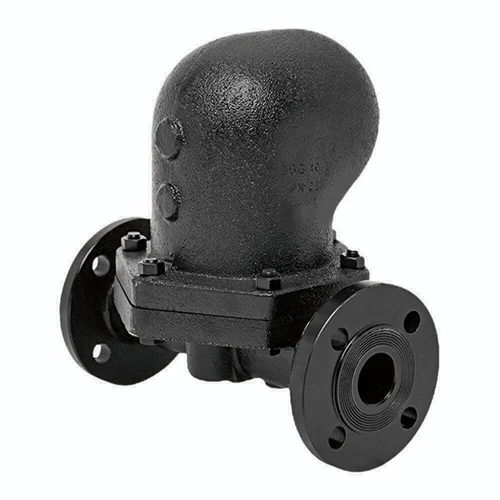

CS WCB Ball Float Steam Trap Screwed End

Get Quote Now

Product Specification
Parts	Material
Body	CS (WCB) SG Iron
Cover	CS (WCB) SG Iron
Ball Assmble	SS 304
SLR Unit	AISI 304
SLR Seat	AISI 304
Packing	Asbestos
Cover Gasket	CAF
Gland	AISI 304
Cover Bolts	Cast Steel
Pressure	0-15 kgs

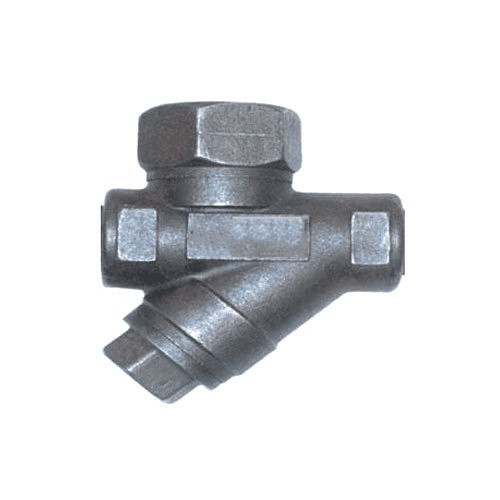

Steam Trap

Get Quote Now

Material Detail
PART NO.	PART NAME	MATERIAL
01	Body	S.S.CF8 /CF8M /CA-40
02	Screen	S.S.304 (20/40 Mesh)
03	Plug	S.S. CF8 / CF8M / CA40
04	Disc	S.S. CF8 / CF8M / CA40
05	Body Cover	S.S. CF8 / CF8M / CA40

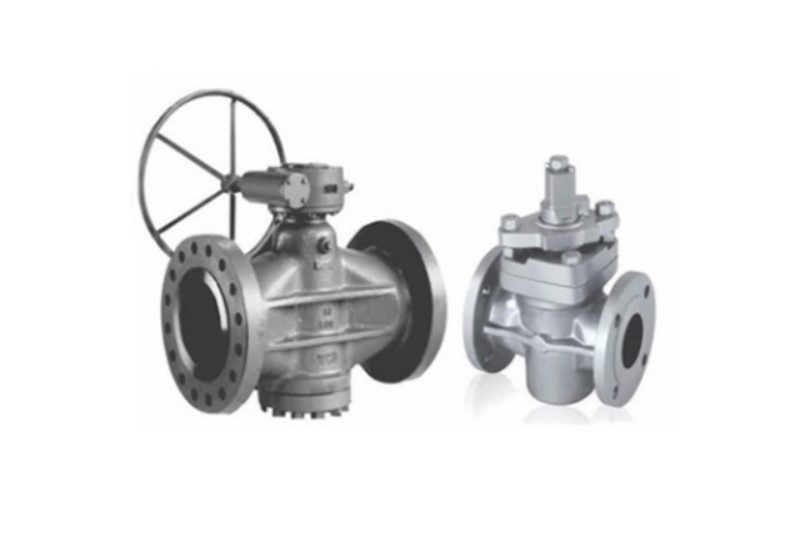

Plug Valve

Get Quote Now

Proflow SELF LUBRICATING PLUG VALVE
BODY	C.I. (IS 210 Gr. FG 220) / CS ASTM A 216 Gr. WCB/SS 304/SS 316
PLUG	C.I. (IS 210 Gr. FG 220) / CS ASTM A 216 Gr. WCB/SS 304/SS 316
STEM	CS/AISI 304/SS 316
GLAND PACKING	RUBBERISED ASBESTOS
GASKET	COMPRESSED ASBESTOS
NUT BOLTS	CARBON STEELSTAINLESS STEEL
END CONNECTIONS	TABLE- D,TABLE -E , TABLE –F ,PN 10,PN16,AS PER IS , ASA 150#, ASA 300#
SIZE RANGE	25 nb to 250 nb (1″ to 10″)

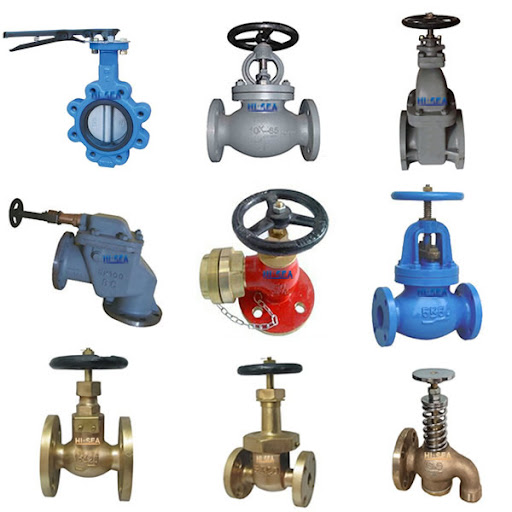

Marine Valve

Get Quote Now

Proflow Valves is an renowned manufacturer and supplier of high quality bronze marine valves. We provide full range of marine valves as per DIN, JIS, ANSI and VG standards.

Our primary goal is to provide unique flow solutions with our best quality marine valves for service in private shipyards, ship owners, navy vessel, valves for coast guard vessel, valves for FRP boat, valves for passenger boat, valves for catamaran boat and valves for aluminium boat.

We manufacture above valves in various material combinations like Nickel Aluminium Bronze (NAB) marine valves, Bronze marine Valves, Cast Iron valves, Ductile Iron Valves, Cast Steel valves, Gun Metal Valves, Stainless steel valves.

Product Specifications

Forge Gate Valve

MATERIAL DETAIL

Forge Steel Gate Valve

MATERIAL DETAIL

Gate Valve

PRODUCT DESCRIPTION

MATERIAL DETAIL

Cast Steel (WCB) Globe Valve

CAST STEEL ND - 40 GLOBE VALVE

Forge Steel Globe Valve

WCB Body Globe Valve Flanged End

Swing Check Valve

PRODUCT DESCRIPTION

MATERIAL DETAIL

Wafer Check Valve

PRODUCT DESCRIPTION

MATERIAL DETAIL

2 Piece Design Ball Valve

PRODUCT DESCRIPTION

MATERIAL DETAIL

3 Piece Ball Valve Flanged End

3 Piece Handle Ball Valve Screwed End

Double Acting Pneumatic Actuator Butterfly Valve

Double Flange Butterfly Valves

Wafer Type Butterfly Valve

Lug Type Butterfly Valve

PRODUCT DESCRIPTION

3 way Pneumatic Diaphragm Control Valve for Mixing/Diverting Duty

Bi Directional Knife Edge Gate Valve

Double Acting Cylinder Operated Knife Edge Gate Valve

Double Flange Knife Edge Gate Valve

Electrical Operated Knife Edge Gate Valve

Uni Directional Knife Edge Gate Valve

Needle Valve

Lift Type Non Return Valve

Pulp Valve

Safety Valve

CS WCB Ball Float Steam Trap Screwed End

Steam Trap

Plug Valve

Marine Valve

About Proflow Valves

Our Products

Get in Touch
