Ball Valve

Design Features

• Quarter-turn ball valve for quick shutoff.

• Full bore design ensures minimal flow resistance.

• Blow-out proof stem for added safety.

• Bubble-tight shutoff capability.

• Manual operation with lever handle.

• ISO 5211 mounting pad available on some models for actuation.

• End connections available: Flanged, Screwed, Socket Welded.

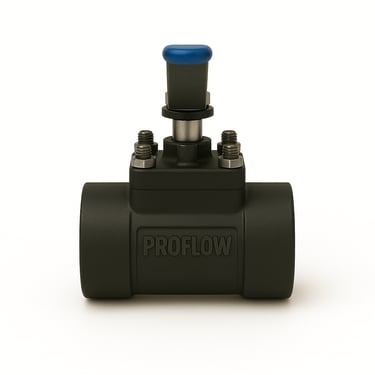

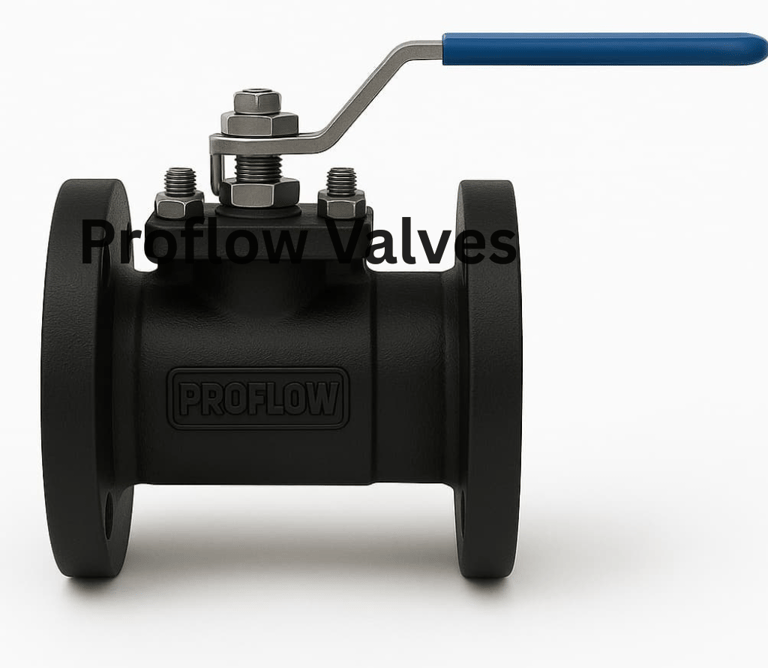

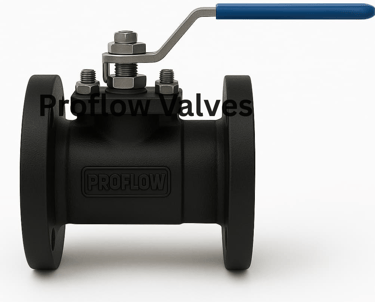

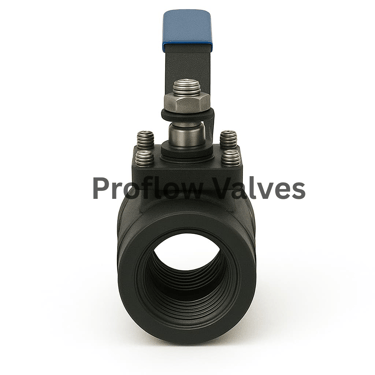

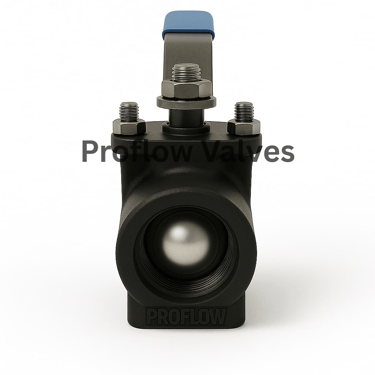

Cast Iron Ball Valve

Material of Construction

• Body: Cast Iron (ASTM A126 Class B).

• Ball: Stainless Steel or Chrome-plated Brass.

• Stem: Stainless Steel.

• Seat: PTFE or RPTFE (soft seat).

• Seals: PTFE or optional Graphite.

• Handle: Carbon Steel or Stainless Steel with PVC grip.

• Fasteners: Carbon Steel or Stainless Steel.

Size Range Available

• Flanged End: ½ inch to 12 inch (DN15 to DN300).

• Screwed End: ¼ inch to 2 inch (DN8 to DN50).

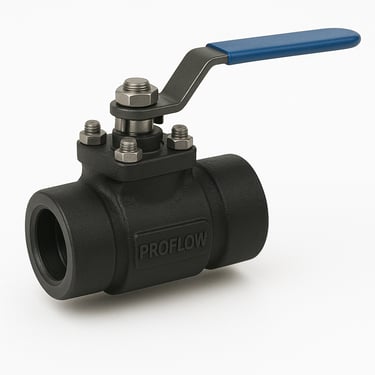

• Socket Welded End: ¼ inch to 2 inch (DN8 to DN50).

Pressure Rating

• Flanged End: PN16 / ANSI Class 125 or 150.

• Screwed End: 200 PSI WOG (non-shock).

• Socket Welded End: 200 PSI WOG (non-shock).

Design Features

• Full port for unrestricted flow

• Blow-out proof stem for safety

• Antistatic design

• Fire-safe construction (API 607/6FA compliant on request)

• ISO 5211 mounting pad for actuator compatibility

• Quarter-turn operation with lever handle

• Tight shutoff with floating ball mechanism

• Anti-friction PTFE seats and seals

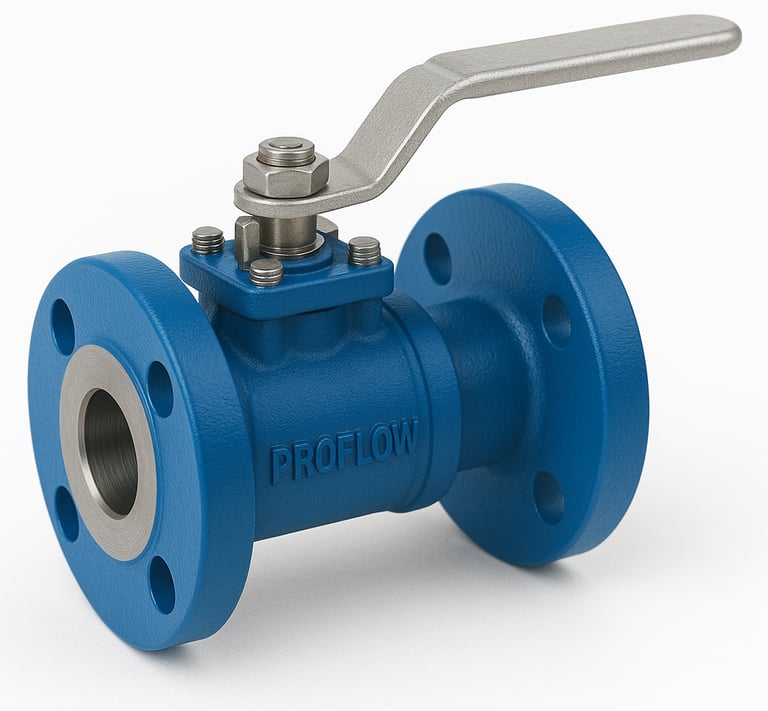

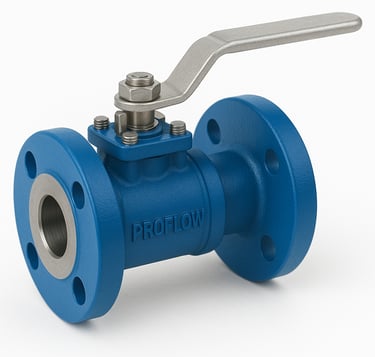

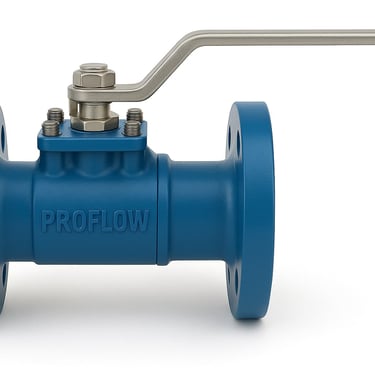

Cast Steel Ball Valve

Material of Construction

• Body & End Caps: ASTM A216 Gr. WCB (Cast Carbon Steel)

• Ball: Stainless Steel (SS 304/316)

• Stem: Stainless Steel (SS 410/304/316)

• Seats & Seals: PTFE / Reinforced PTFE / Graphite (optional for fire-safe)

• Fasteners: Alloy Steel / Stainless Steel

• Handle: Mild Steel with PVC Sleeve

Size Available

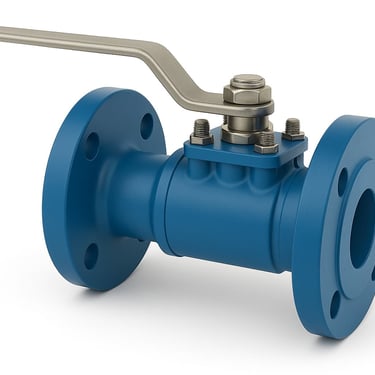

• Ranges from ½” (15 mm) to 12” (300 mm)

• Larger sizes can be provided upon request for specific industrial requirements

Pressure Rating

• ANSI Class 150 / 300

• PN 16 / PN 25 (on request)

• Suitable for working pressure up to 285 PSI for Class 150 and 740 PSI for Class 300 at 100°F

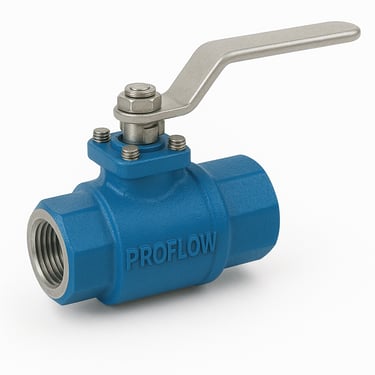

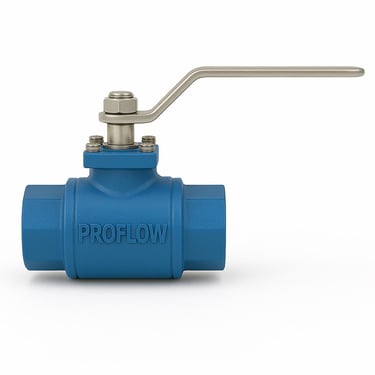

Screwed End (NPT/BSP)

• Connection Standard: ASME B1.20.1 (NPT), ISO 7/1 (BSP)

• Sizes: ½” to 2”

• Same internal design as flanged type

• Compact and suitable for threaded piping systems

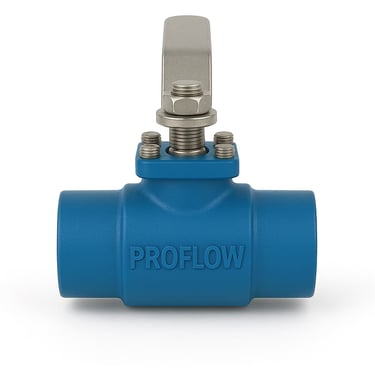

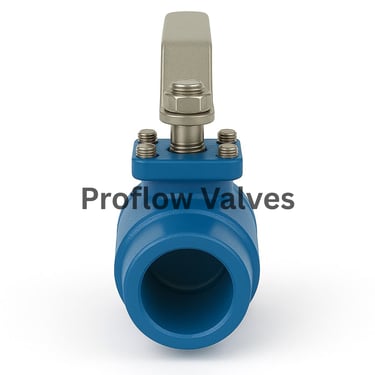

Socket Weld End

• Connection Standard: ASME B16.11

• Sizes: ½” to 2”

• Ideal for high-pressure applications requiring permanent connections

• Reinforced weldable ends

Design Features

• Full port design for minimal flow resistance

• Blow-out proof stem for added safety

• Fire-safe and anti-static features (optional)

• ISO 5211 mounting pad for direct actuator installation

• Lockable lever for secure positioning

• Two-piece or three-piece design (depending on model)

• Reinforced seats for longer service life

• Quarter-turn operation with positive shut-off

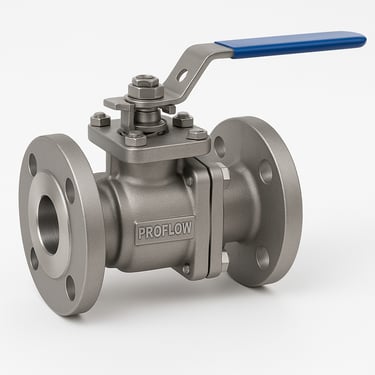

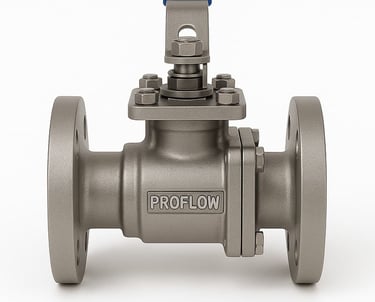

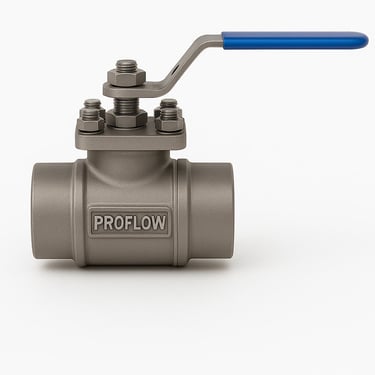

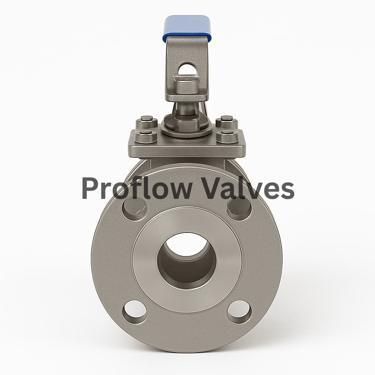

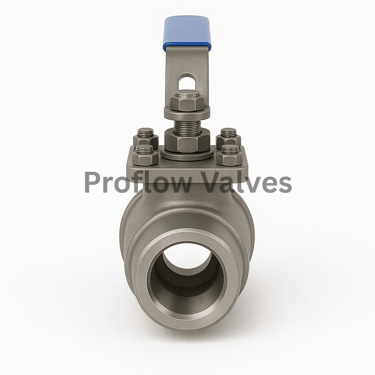

Stainless Steel Ball Valve

Material of Construction

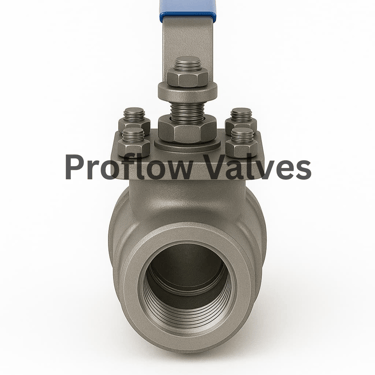

• Body & End Caps: ASTM A351 Gr. CF8 / CF8M (SS 304 / SS 316)

• Ball: SS 304 / SS 316 (mirror polished)

• Stem: SS 410 / SS 304 / SS 316

• Seats & Seals: PTFE / RPTFE / Graphite (for high-temp/fire-safe service)

• Gland & Packing: SS + PTFE / Graphite

• Handle: SS with PVC or vinyl sleeve

• Fasteners: Stainless Steel

Size Available

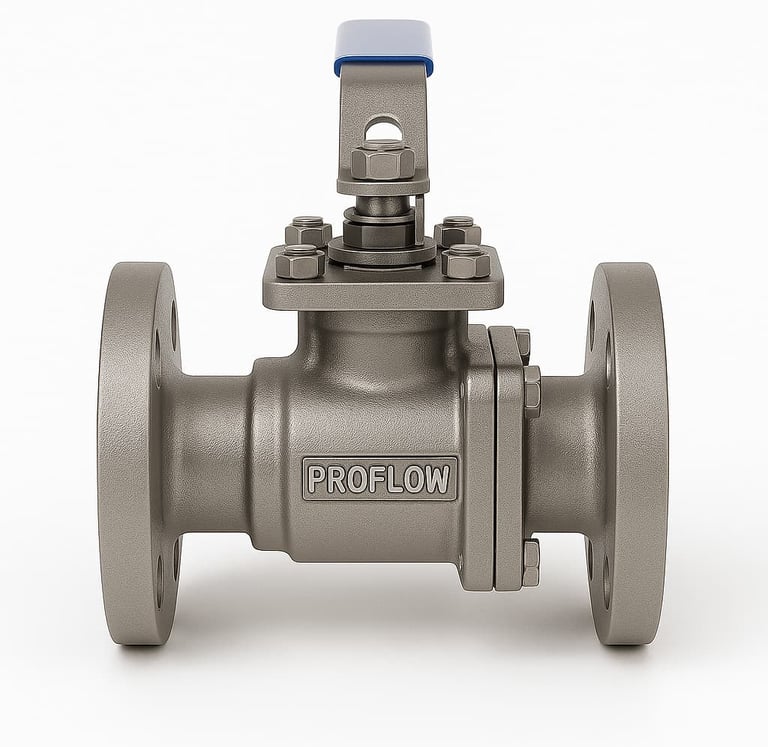

• Flanged Ends: ½” (15 mm) to 8” (200 mm)

• Screwed/Socket Weld Ends: ¼” (8 mm) to 2” (50 mm)

• Larger sizes can be provided upon request for specific industrial requirements

Pressure Rating

• Flanged End: ANSI Class 150 / 300

• Screwed & Socket Weld End: 1000 WOG (Water, Oil, Gas)

• Max Pressure (WOG): Up to 1000 PSI at 100°F for threaded/socket

• Max Pressure (Flanged): Up to 740 PSI for Class 300 at 100°F

Screwed End (NPT/BSPT)

• Connection per ASME B1.20.1 or ISO 7/1

• Compact design for small bore pipelines

• Suitable for general industrial fluids

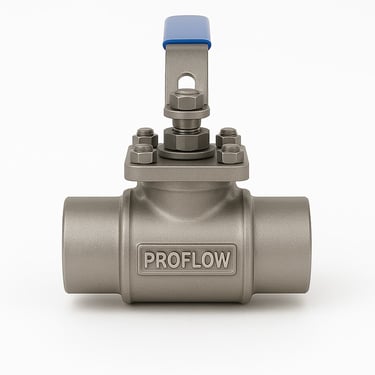

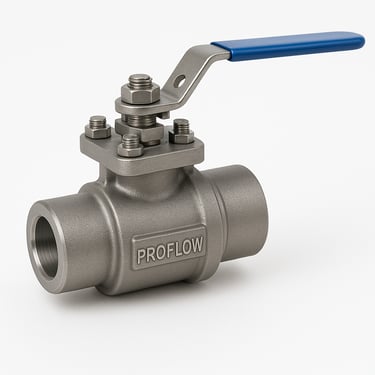

Socket Weld End

• Connection per ASME B16.11

• Ideal for high-pressure, high-vibration applications

• Offers permanent, leak-tight connection
