Strainer Y Type Valve

Design Features

• Y-pattern strainer body for efficient debris removal and minimal pressure drop

• Bolted cover with drain/clean-out port

• Screen supported for high flow capacity

• Suitable for horizontal or vertical installation (flow downward)

• End Connections: Flanged (as shown), optionally available in Screwed or Socket Welded

• Designed as per ASME B16.34 / BS 1873 or equivalent

• Mesh Size: Varies as per application (typically 20–40 mesh)

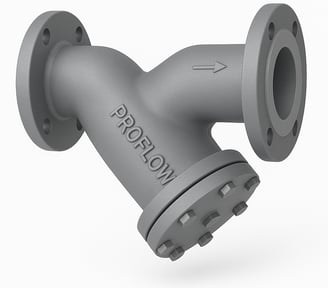

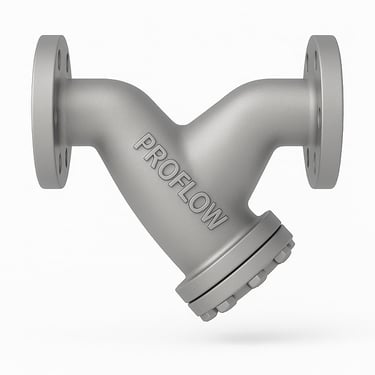

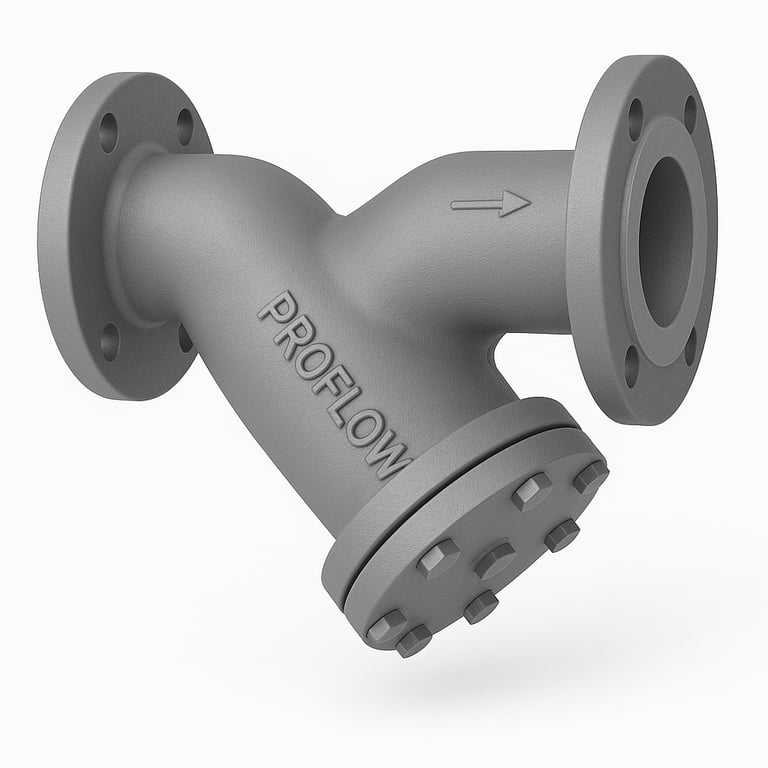

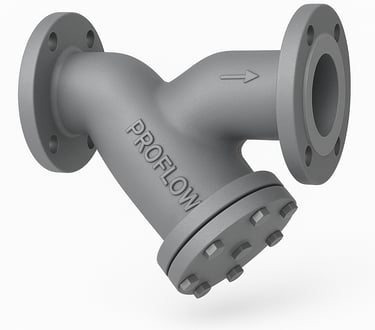

Carbon Steel Strainer Y Type Valve

Material of Construction

• Body & Bonnet: ASTM A216 Gr. WCB (Carbon Steel)

• Screen: Stainless Steel (SS304 / SS316)

• Gasket: Spiral Wound SS with Graphite filler

• Bolts/Nuts: Carbon Steel or Stainless Steel as per customer specs

• Plug: Carbon Steel / SS (for blow-off connection)

Size Range Available

• ½" (15 mm) to 24" (600 mm)

• Larger sizes can be provided upon request for specific industrial requirements.

Pressure Rating

• ANSI Class 150 / 300 / 600

• PN16 / PN25 available upon request

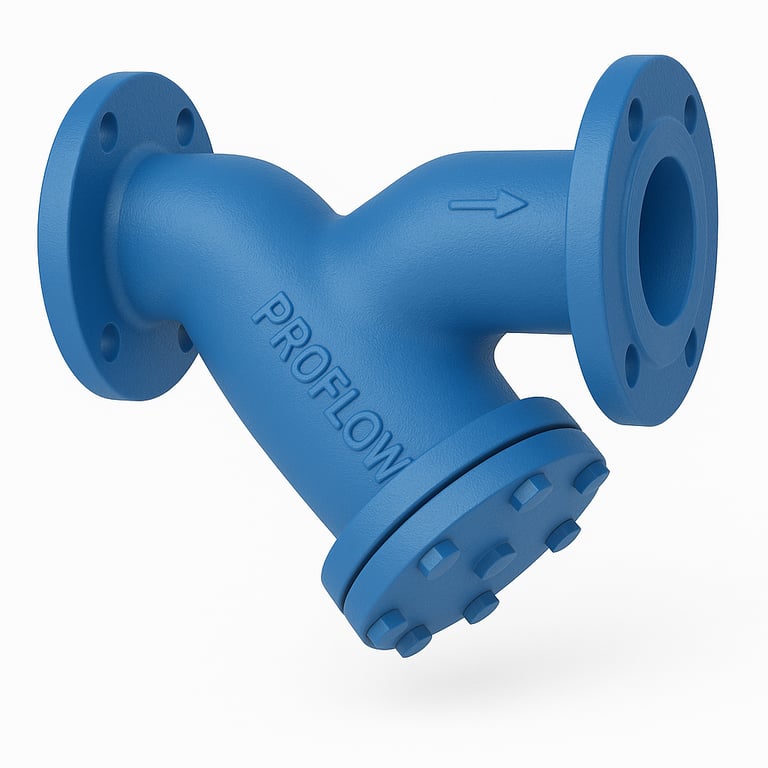

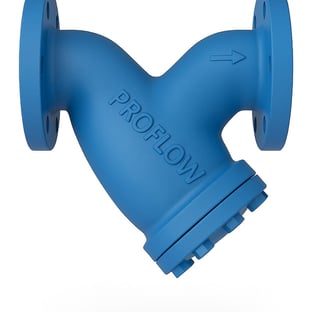

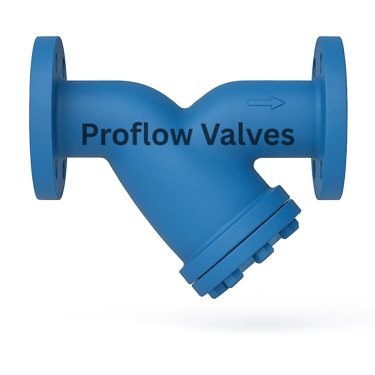

Cast Iron Strainer Y Type Valve

Design Features

• Y-pattern body design for optimal flow and filtration efficiency

• Removable bolted cover for easy screen access and maintenance

• Drain plug provision for cleaning without disassembly

• Flanged end connections, typically as per ANSI B16.1 or DIN PN standards

• Suitable for horizontal and vertical pipe installations

• Screen mesh customizable (standard mesh: 20–40 mesh SS)

Material of Construction

• Body & Cover: Cast Iron (IS 210 Gr. FG 260 / ASTM A126 Class B)

• Strainer Screen: Stainless Steel (SS304 or SS316)

• Gasket: Compressed Asbestos Fiber (CAF) / Rubber / Graphite

• Fasteners: Mild Steel / Carbon Steel (Zinc plated)

Pressure Rating

• PN10 / PN16

• Up to 150 PSI (depending on size and standard)

Size Range Available

• ½" (15 mm) to 24" (600 mm)

• Larger sizes can be provided upon request for specific industrial requirements.

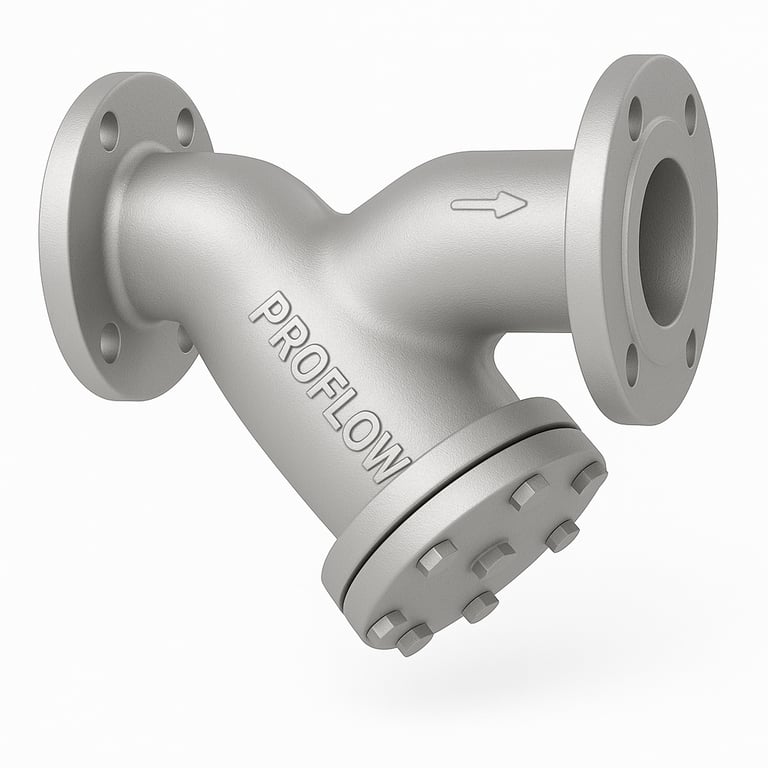

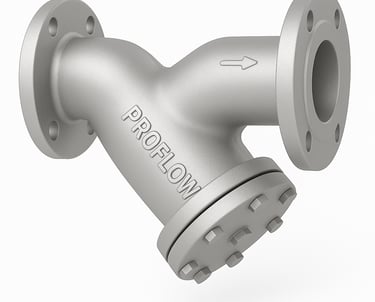

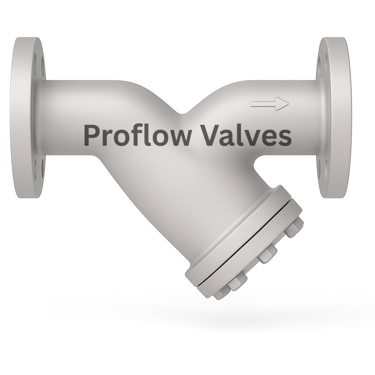

Stainless Steel Strainer Y Type Valve

Design Features

• Y-pattern design ensures minimal pressure drop and efficient particle separation

• Bolted cover for easy screen removal and maintenance

• Provided with blow-off/drain plug for easy flushing

• Suitable for both horizontal and vertical installation

• Fine mesh screen prevents entry of solid particles into downstream equipment

• Available with flanged end connections per ANSI/DIN/BS standards

Pressure Rating

• Class 150 / PN16 / PN40 (depending on design and end connections)

• Suitable for high-temperature and corrosive service applications

Size Range Available

• ½" (15 mm) to 24" (600 mm)

• Larger sizes can be provided upon request for specific industrial requirements.

Material of Construction

• Body & Cover: Stainless Steel SS304 / SS316

• Screen Element: Stainless Steel SS304 / SS316 (wire mesh or perforated)

• Gasket: PTFE / Graphite / Spiral wound SS with filler

• Fasteners: Stainless Steel
