Strainer T Type Valve

Design Features:

• Type: T-Type (In-line) Basket Strainer

• End Connection: Flanged (likely ANSI B16.5 compatible)

• Top Cover: Bolted cover with lifting eye for easy basket removal

• Straining Element: Replaceable perforated or mesh basket

• Orientation: Horizontal in-line flow

• Function: Removes debris from fluid systems to protect downstream equipment

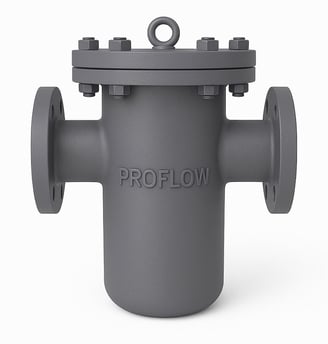

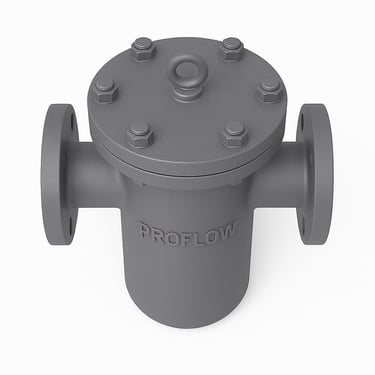

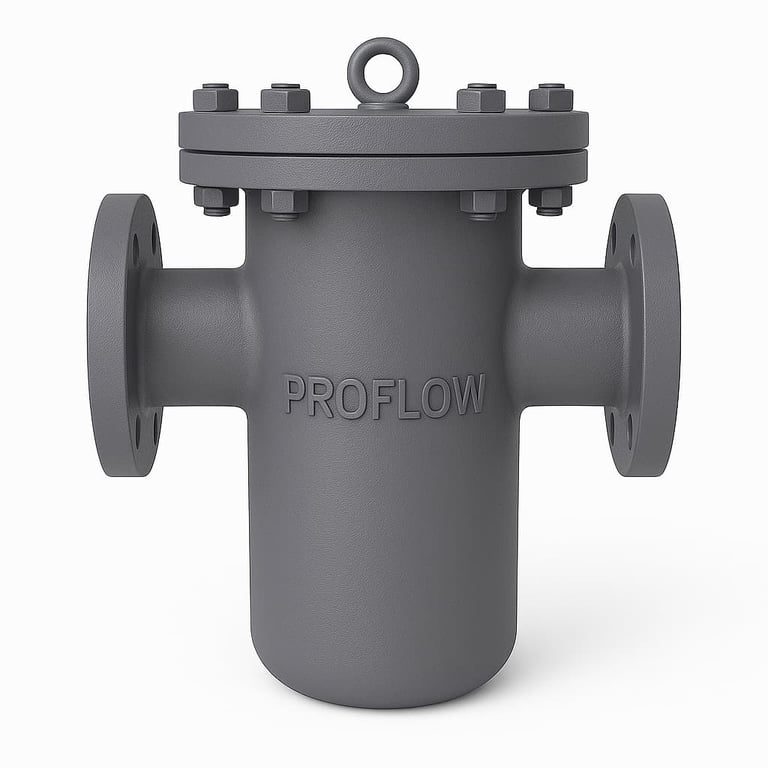

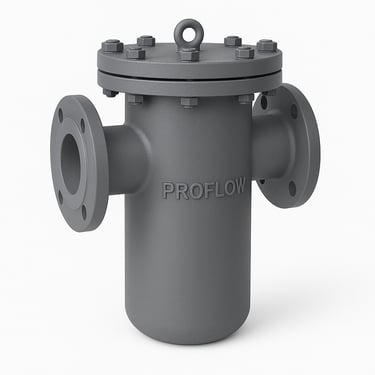

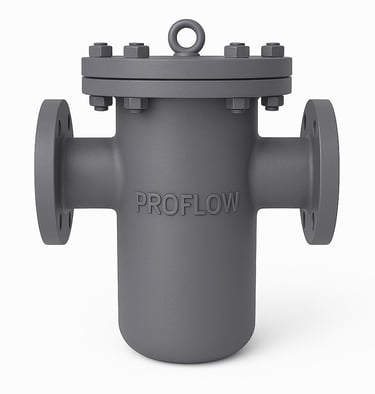

Carbon Steel Strainer T Type Valve

Material of Construction:

• Body & Cover: Carbon Steel (typically ASTM A216 Gr. WCB)

• Strainer Basket: Stainless Steel (SS304/SS316 depending on media)

• Gasket: Spiral wound stainless steel with graphite filler or PTFE

• Bolts/Nuts: Carbon Steel or Stainless Steel (coated for corrosion resistance)

Size Available:

• Typically ranges from:

  • 2” (50 mm)

  • Up to 24” (600 mm) or more depending on custom order

• Common industrial sizes include 2”, 3”, 4”, 6”, 8”, 10”, and 12”

Pressure Rating:

• Class 150, 300, and 600 (ANSI B16.5)

• Working pressure depends on flange rating, typically:

  • Class 150: up to ~19 bar (275 psi)

  • Class 300: up to ~50 bar (740 psi)

  • Class 600: up to ~100 bar (1480 psi)

Design Features:

• Type: T-Type (Basket) Strainer

• Mounting: Inline, flanged connection for horizontal pipeline installation

• Cover: Bolted top cover with lifting eye for easy maintenance

• Screen Type: Removable perforated or mesh basket insert

• Function: Protects pumps, valves, and other components by removing debris from fluids

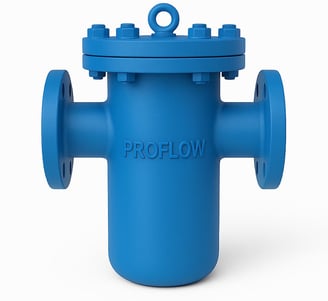

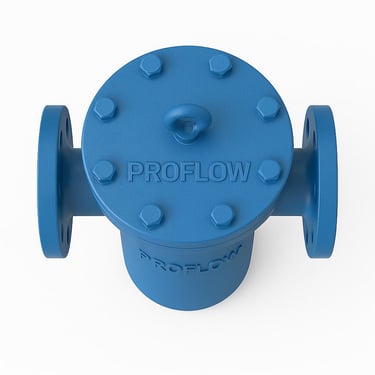

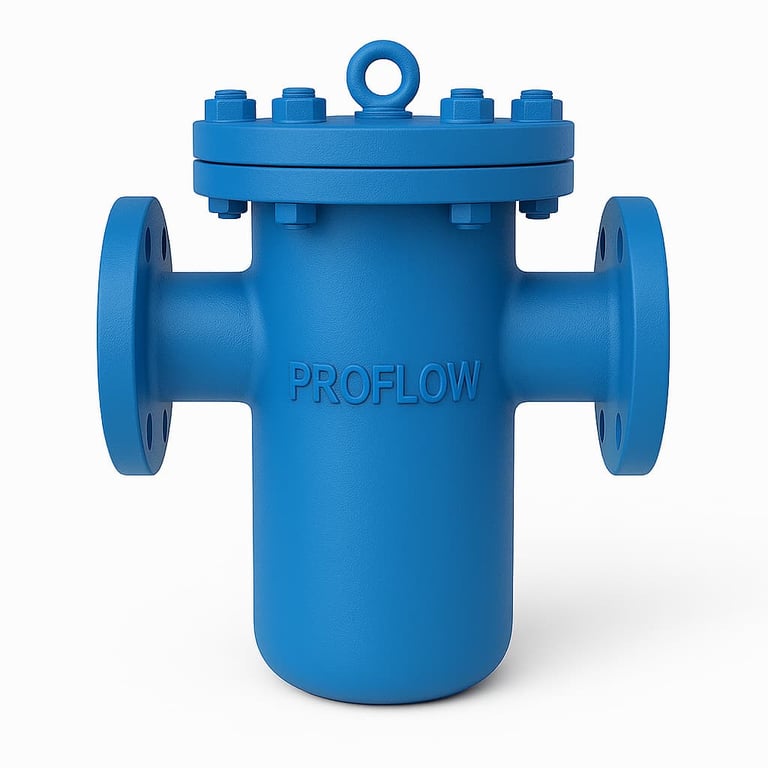

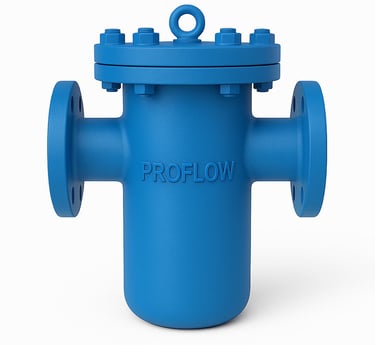

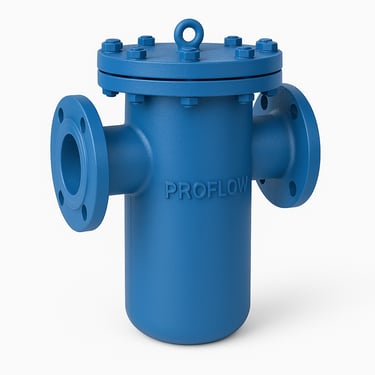

Cast Iron Strainer T Type Valve

Material of Construction:

• Body & Cover: Cast Iron (typically ASTM A126 or IS 210 Gr. FG 260)

• Basket Element: Stainless Steel (SS304 or SS316)

• Gasket: Non-asbestos compressed fiber or PTFE

• Fasteners: Carbon steel or galvanized bolts

Sizes Available:

• Commonly available in:

  • 2” (50 mm)

  • 2.5” (65 mm)

  • 3” (80 mm)

  • 4” (100 mm)

  • 6” (150 mm)

  • Up to 12” (300 mm) or larger for custom needs

Pressure Rating:

• PN16 (Standard for cast iron flanged components)

• Max Working Pressure: 16 bar (232 psi)

• Max Temperature: ~200°C (392°F) depending on gasket and application

Design Features:

• Configuration: T-Type (Basket) Strainer for inline horizontal piping

• End Connections: Flanged, standard ASME B16.5 or DIN

• Cover: Bolted type with lifting eye for easy removal and maintenance

• Straining Element: Removable perforated/mesh stainless steel basket

• Application: Ideal for high-corrosion and sanitary environments (steam, chemical, food-grade, etc.)

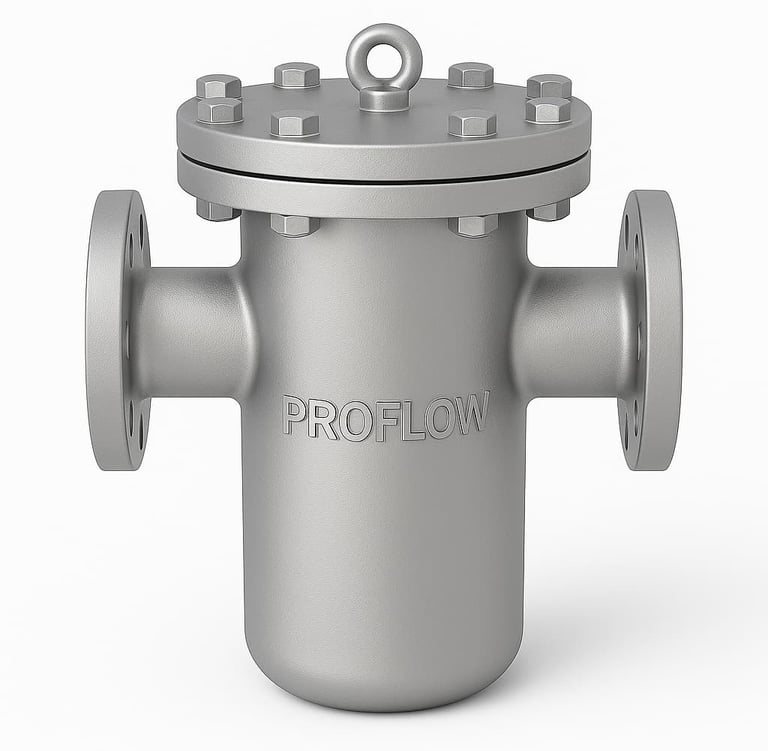

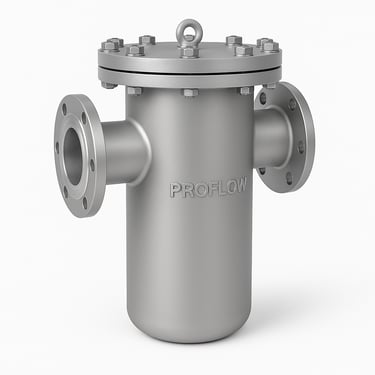

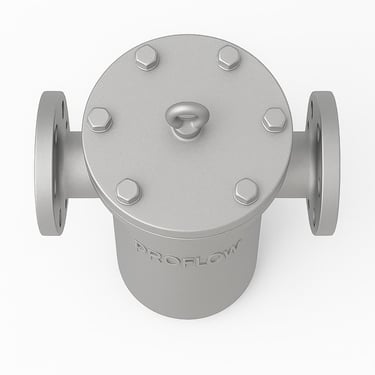

Stainless Steel Strainer T Type Valve

Material of Construction:

• Body & Cover: Stainless Steel (SS304 or SS316)

• Basket/Screen: Stainless Steel (SS316 as standard)

• Gasket: PTFE or Graphite depending on temp/pressure class

• Bolts & Nuts: SS304/SS316

Sizes Available:

• Typically from:

  • 1” (25 mm) to 12” (300 mm)

  • Larger sizes available on request

Pressure Rating:

• Class 150 / PN16 standard

• Optional higher pressure classes (e.g., Class 300 / PN40)

• Max Working Pressure: 16 bar to 40 bar, depending on rating

• Temperature Range: -29°C to 400°C, gasket-dependent
