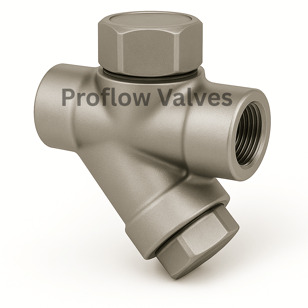

Steam Trap Valve

Design Features:
  • Type: Y-pattern thermodynamic steam trap

  • Connection: Threaded (Female BSP/NPT as per visible threading)

  • Body Design: Compact forged or precision cast body

  • Flow Direction: Marked inline flow from one end to another

  • Cap Type: Hexagonal removable cap for disc access/maintenance

Material of Construction:
  • Body: Stainless Steel (SS 304 or SS 316)

  • Cap/Disc: Stainless Steel

  • Strainer (if internal): Stainless Steel mesh

  • Gasket: PTFE or SS-graphite composite (typically for high-temp sealing)

Sizes Available:
  • Standard sizes for such traps generally include:

    • 15 mm (½")

    • 20 mm (¾")

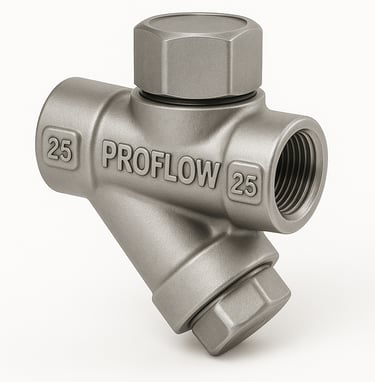

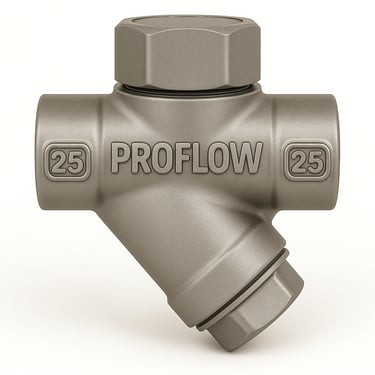

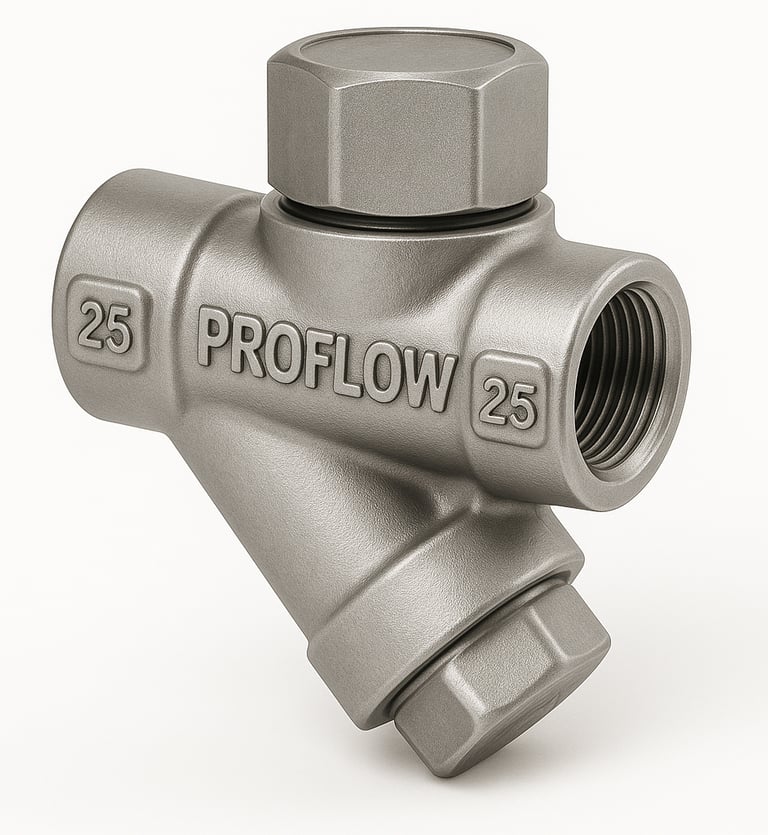

    • 25 mm (1") (as shown in image)

    • Some models also available up to 50 mm (2")

Pressure Rating:
  • Typical Design Pressure Range:

    • Up to 40 bar (600 psi) for stainless steel traps

    • Operating temperature up to 425°C (797°F)

    • Classifications: ANSI 600 or PN40 (depending on region/spec)
